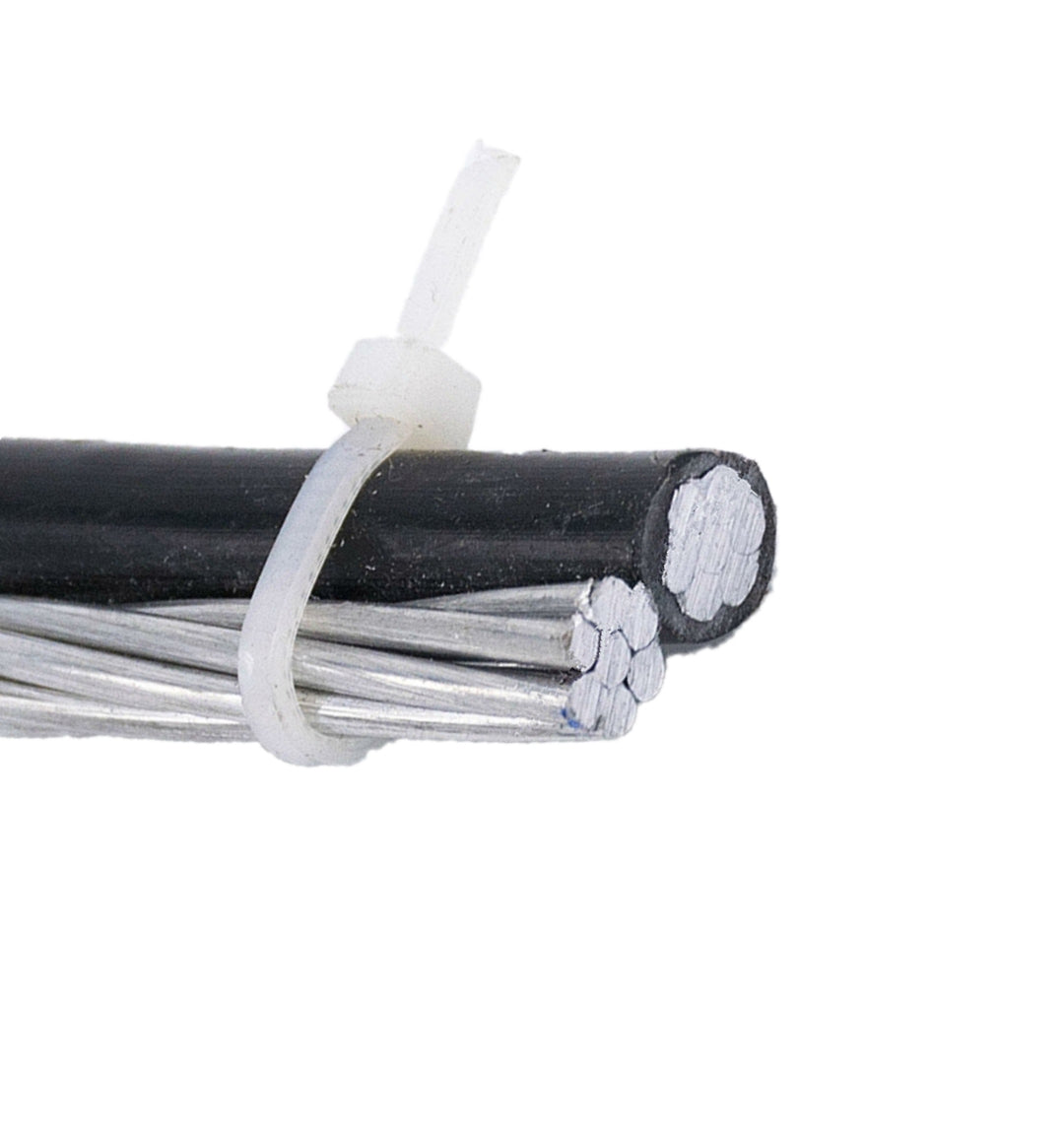

Aluminum Duplex Overhead Conductor

Aluminum Duplex Overhead Conductor

SKU:   Download PDF

Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Sold out
Shipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Reviews
Product Information

Also Known As:

Aluminium overhead cables, overhead aluminum wire, two conductor cable, 2 conductor power cable, two conductor, aluminum drop, overhead service drop conductors, overhead service conductors.

Conductors:

Triplex aluminum wire has a concentric strand or compressed 1350-H19 series aluminum conductor.

Messenger:

Aluminum triplex cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.

Insulation:

Triplex overhead aluminum wire has a black cross-linked polyethylene (XLP) insulation.

Resources
Applications
Duplex aluminium overhead cables have two conductors: one for electrodes, and the other one as a messenger (neutral conductor). This electrical wire, also called duplex overhead aluminum wire, is designed and manufactured for use in 120 V power distribution facilities. It is aerially installed with a maximum operational temperature rating of 75°C.

Just as the name of the aluminum drop duplex cable suggests, it has aluminium conductors which are insulated with a cross linked polyethylene for chemical and mechanical protection, forming the circular core. A bare messenger wire of this electrical cable is made of aluminum and is longitudinally laid on the conductors.
Features
Standards:

• ASTM B-230

• ASTM B-231

• ASTM B-232

• ASTM B-399

• ICEA S - 76 - 474
