Teck Armor 600V Copper XHHW-2

Product Description:

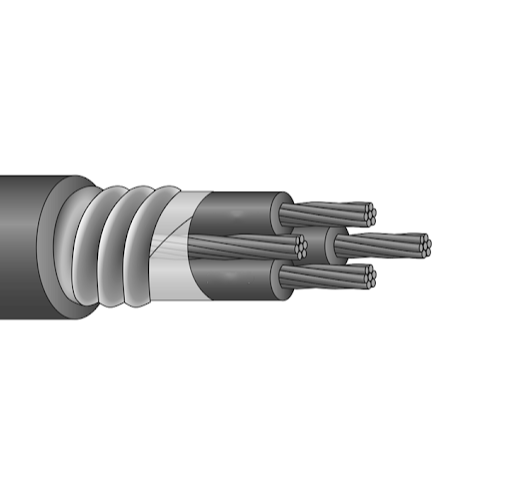

The Teck Armor 600V Copper XHHW-2 cable consists of insulated Class B stranded bare soft copper conductors wrapped in an aluminum interlocked armor.  The soft copper is an annealed copper product that offers more flexibility without compromising the copper’s powerful conductive properties.  The copper conductors are insulated with a cross-linked polyethylene (XLP) insulation, which adds mechanical strength to the cables while protecting the conductors from corrosion.  The insulation on each conductor is color coded for identification.  The assembly includes an uninsulated grounding conductor which is made of Class B stranded copper.  The grounding conductor ensures steady conductivity over the life of the cable.  Fillers and binder tape are used to firmly set the assembly of conductors in place.  A heat, flame and moisture-resistant inner jacket of polyvinyl chloride (PVC) is the inner layer of the exterior jacket.  Covering the PVC inner jacket is a rigid interlocked aluminum armor which protects the conductors from being jarred or interfered with by outside objects.  The aluminum armor bears a PVC jacket that is also resistant to heat, flame and moisture.

Applications:

This cable can be used in wet or dry locations.  The cable can be installed in exposed or concealed areas in indoor or outdoor applications.  The cable’s rugged exterior makes is a suitable option for use in harsh climates or in hazardous locations.  Common uses for this cable are for lighting, power, and control circuits in mills, processing plants, mines, commercial centers, refineries, mines, generating stations, chemical plants and industrial plants.  The cable can function continuously between temperatures of -40°C and 90°C.  Underwriters Laboratories lists the cable capable of transmitting up to 600 volts.

Specifications:

  • In accordance with specifications set forth by Underwriters Laboratories, this cable is deemed safe for transmission of ampacities of up to 600 volts.
  • This cable passes IEEE 383 Flame test and FT-4 or better.
  • Underwriters Laboratories lists this product as sunlight resistant.

Construction:

-                Conductor

  • The conductors in this cable are Class B stranded bare soft copper.
  • The soft copper is an annealed copper product that offers more flexibility without compromising the copper’s powerful conductive properties.

-                Insulation

  • The copper conductors are insulated with a cross-linked polyethylene (XLP) insulation.
  • The insulation adds mechanical strength to the cables while protecting the conductors from corrosion

-                Grounding Conductor

  • The grounding conductor is an uninsulated class B stranded copper wire.
  • The purpose of the grounding conductor is to ensure steady conductivity through the phase conductors over the life of the cable.

-                Assembly

  • Fillers and binder tape are used to set the assembly of cables in place by filling unused space.

-                Inner Jacket

  • The inner jacket is composed of a polyvinyl chloride heat, flame, and moisture resistant jacket that can tolerate temperatures as low as -40°C.

-                Armor

  • The assembly is encased in an interlocked aluminum armor.
  • The rigid armor protects the conductor from being jarred or interfered with by outside objects.
  • The aluminum armor is a great economical alternative to installing wire in conduit systems.


Technical Specifications:
Number of Conductors in Cable: 4
Jacket Thickness (mils): 100
Nominal Insulation Thickness (mm): 45
Ground Wire Size (AWG): 1- #8
Size AWG: 6
Stranding: 7
Diameter Complete Cable (O.D.) (Inches): 1.110
Weight Per 1000ft Total (Lbs.): 777
Allowable Ampacity 90C (Amps): 60
General Cable Part # 11288.0306
Nexans item Part # 383620
Omni Cable Part # T30604
Southwire item Part # 561966
