4/5 SOOW Cable Non UL

4/5 SOOW Cable Non UL

Select gauge from drop-down menu for prices:

4/5 SOOW Cable Non UL

Regular price $15.00 $9.60 Sale /per Foot

Description

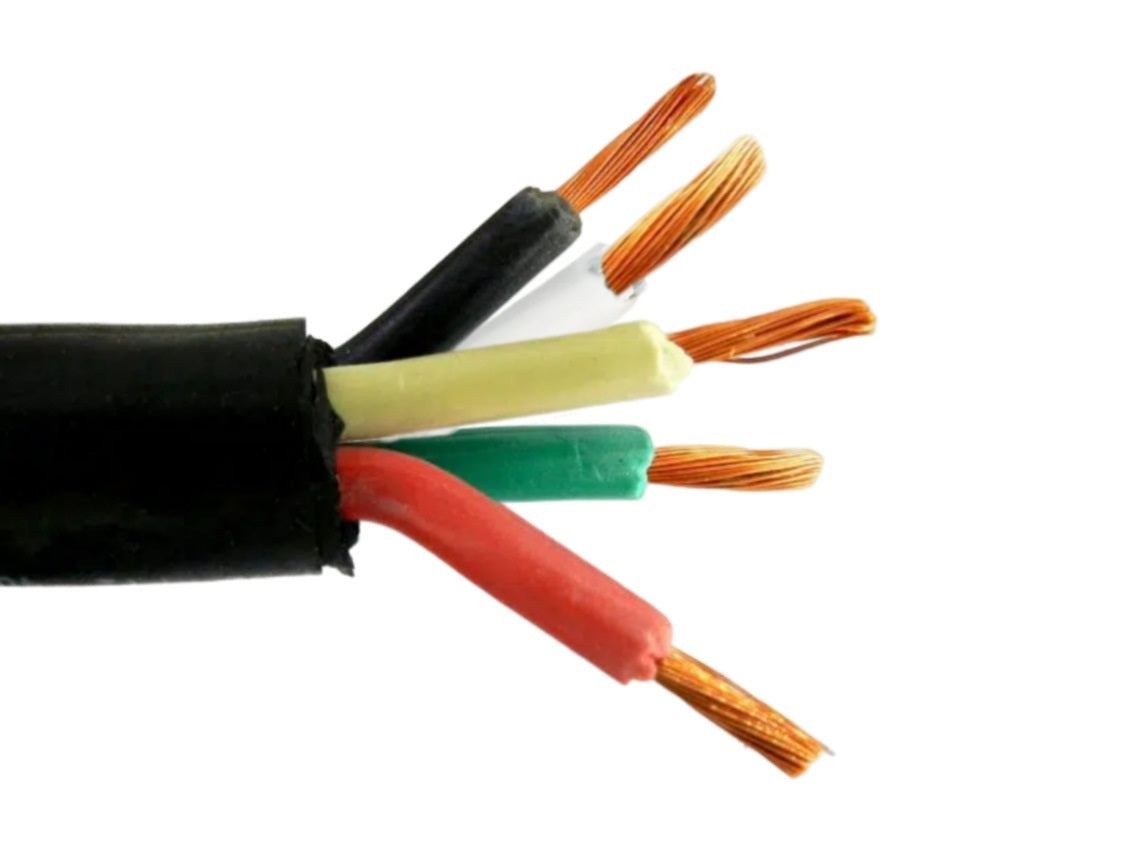

• 4/5 SOOW Cable Non UL Highlights 4 Gauge 5 Conductors. 4/5 SO Cord can transmit 48 Amps of Current. The conductor has EPDM rubber a tough but flexible material that protects the conductors from abrasion as well as corrosion due to sunlight, oil, and water.

Applications
• Wiring remote Control circuits for push-button stations, fire alarm controls, temperature control systems.
• Hard usage on industrial equipment, heavy tools, battery chargers, portable lights welding leads, marine dockside power, power extensions and mining applications.

Conductor
• 18 AWG - 2 AWG Fully annealed stranded bare copper Class K stranding per ASTM B-174

Insulation
• Premium-grade, Color-Coded Ethylene Propylene Diene Monomer Rubber (EPDM)

Jacket
• Black Chlorinated Polyethylene (CPE)

Tempeature Range
• -40°C and 90°C

Standards
• UL Subject 62 listed
• CSA Standard 22.2 No. 49
• MSHA Approved
• RoHS Compliant
• Article 400 of the NEC

Features
• Oil, water, moisture and sunlight resistant
• Good tensile strength, elongation and aging characteristics
• Excellent flexibility
• UL Listed and CSA Certified for indoor and outdoor use

Manufacturers Part Numbers:
• Coleman Cable: 822552, General Cable: 98463, Southwire: 56997599, Omni Cable: B10405, Houston Wire: HW250 00405, Priority Wire: SOOW-4/5

4/5 SOOW Specifications:
Number of Conductors in Cable: 5
Nominal Insulation Thickness (Inches): 0.050
Size AWG: 4
Stranding: 119/25
Diameter Complete Cable (O.D.) (Inches): 1.095
Weight Per 1000ft Total (Lbs.): 1.140
Allowable Ampacity 90C (Amps): 48
