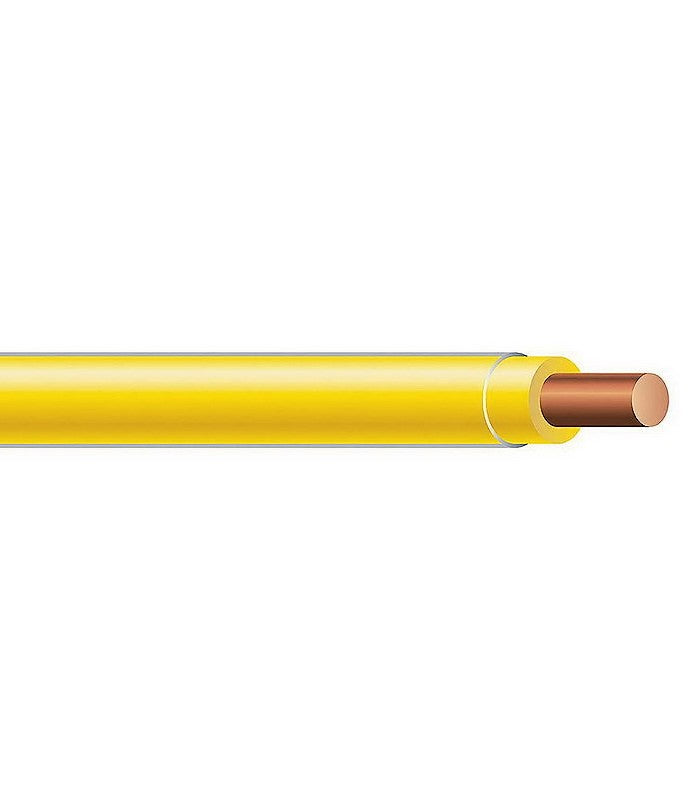

14 XHHW-2 Solid Copper Building Wire

14 XHHW-2 Solid Copper Building Wire

SKU: NES2354SX1   Download PDF

Color
Select a gauge:
  • 14 XHHW-2 Solid Copper Building Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.27 /FT   Web pricing policy
BEFORE   Now $0.27 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

14 XHHW-2 RW90 Copper Building Wire, 14 XHHW-2 Cable, 14 XHHW-2 Direct Burial Cable, 14 XHHW-2 Service Wire, 14 XHHW-2 Copper Wire, XHHW-2 wire

Conductor:

The cable has an annealed bare copper conductor (solid or concentrically stranded). The conductor has excellent electrical conductivity and excellent resistance to moisture. The conductor also has excellent resistance to compression, pressure, and heat.

Insulation:

The cable is insulated with a cross-linked polyethylene jacket (XLPE) that serves as a protective armor to the conductors. It is flame-retardant and resistant to abrasion, corrosion, moisture, dryness, chemicals, and heat.

Resources
Applications
XHHW is a multi-purpose electrical wire with cross-linked high heat water-resistant insulation. The most common applications include raceways for branch circuit wiring, conduits, services, and feeders. It is also used as a building wire. XHHW is suitable for industrial applications due to its toughness and excellent resistance to chemicals. The electrical wire is suitable for temperatures up to 90°C, with a voltage rating of 600 volts.
Features
Standards:

•Ul Standard 493 for Thermoplastic-Insulated Underground Feeder and Branch Circuit Cables
•For use in interior wiring in wet, dry or corrosive locations under-recognized wiring methods of the National Electrical Code (NEC)
•Acceptable to be installed as a Non-Metallic Sheathed Cable following NEC Article 339-3 (4)
•Acceptable for use per NEC Articles 300-4(b) and 339
•ASTM - B3 and B-8
•UL Standard 83
•Federal Specification A-A-59544
•RoHS/ REACH

•Allowable Ampacity for 14 XHHW-2 Copper Building Wire : 15 Amps at 60ºC / 15 Amps at 75ºC / 15 Amps at 90ºC
Specifications
•Size AWG: 14
•Weight: 0.018 lbs per ft
•Number of Strands: Solid
•Insulation: XLPE
•Insulation Thickness: .0.13"/0.14
