UT285C Three Phase Power Quality Analyzer

UT285C Three Phase Power Quality Analyzer

SKU: UT285C   Download PDF

Qty:
Now $329,999.00   Web pricing policy
BEFORE   Now $329,999.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

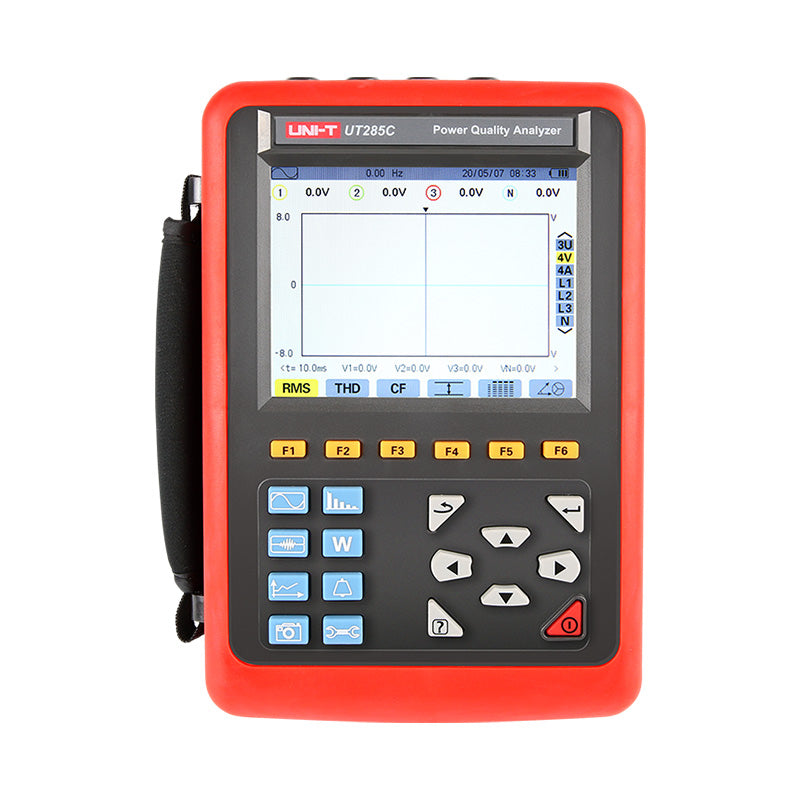

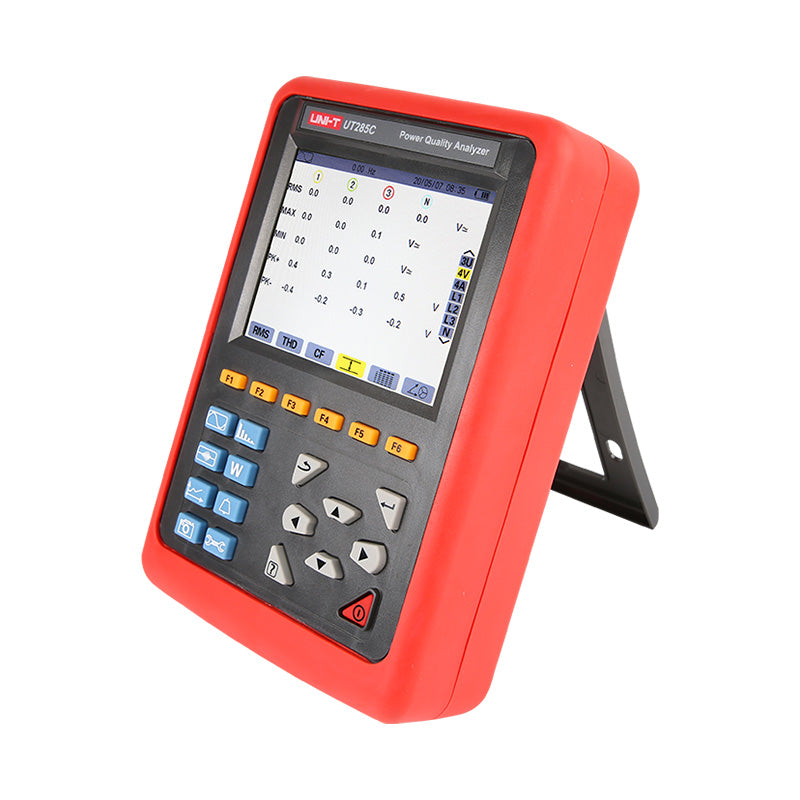

The UT285C Three Phase Power Quality Analyzer provides real-time waveform display for four channels of voltage and current, enabling users to accurately gauge true RMS values of voltages and currents This analyzer measures peak current and voltage values while offering insights into total harmonic distortion (THD) It reports active, reactive, and apparent power both by phase and cumulatively Notable features include the transformer K factor and power factors (PF) alongside displacement factors (DPF or COSΦ).

Additionally, it assesses short-term voltage flicker (PST) and three-phase imbalance for both current and voltage Connectivity is facilitated through a USB interface with accompanying PC software for enhanced usability.

Features and Benefits:

    •Real-time waveform display for voltage and current.

    •True RMS values measurement.

    •Peak current and voltage tracking.

    •Assessment of total harmonic distortion.

    •Measurement of active, reactive, and apparent power by phase.

    •Transformer K factor given for analysis.

    •Monitoring of power factors and displacement factors.

    •Short-term voltage flicker assessment.

    •Evaluation of three-phase imbalance.

    •USB connectivity with PC software.

Specifications:

 True RMS phase-to-neutral voltage 1.0V~ 1000V ±(0.5%+5dgt)
 True RMS phase-to-phase voltage 1.0V~ 2000V ±(0.5%+5dgt)
 DC voltage 1.0V~ 1000V ±(1.0%+5dgt)

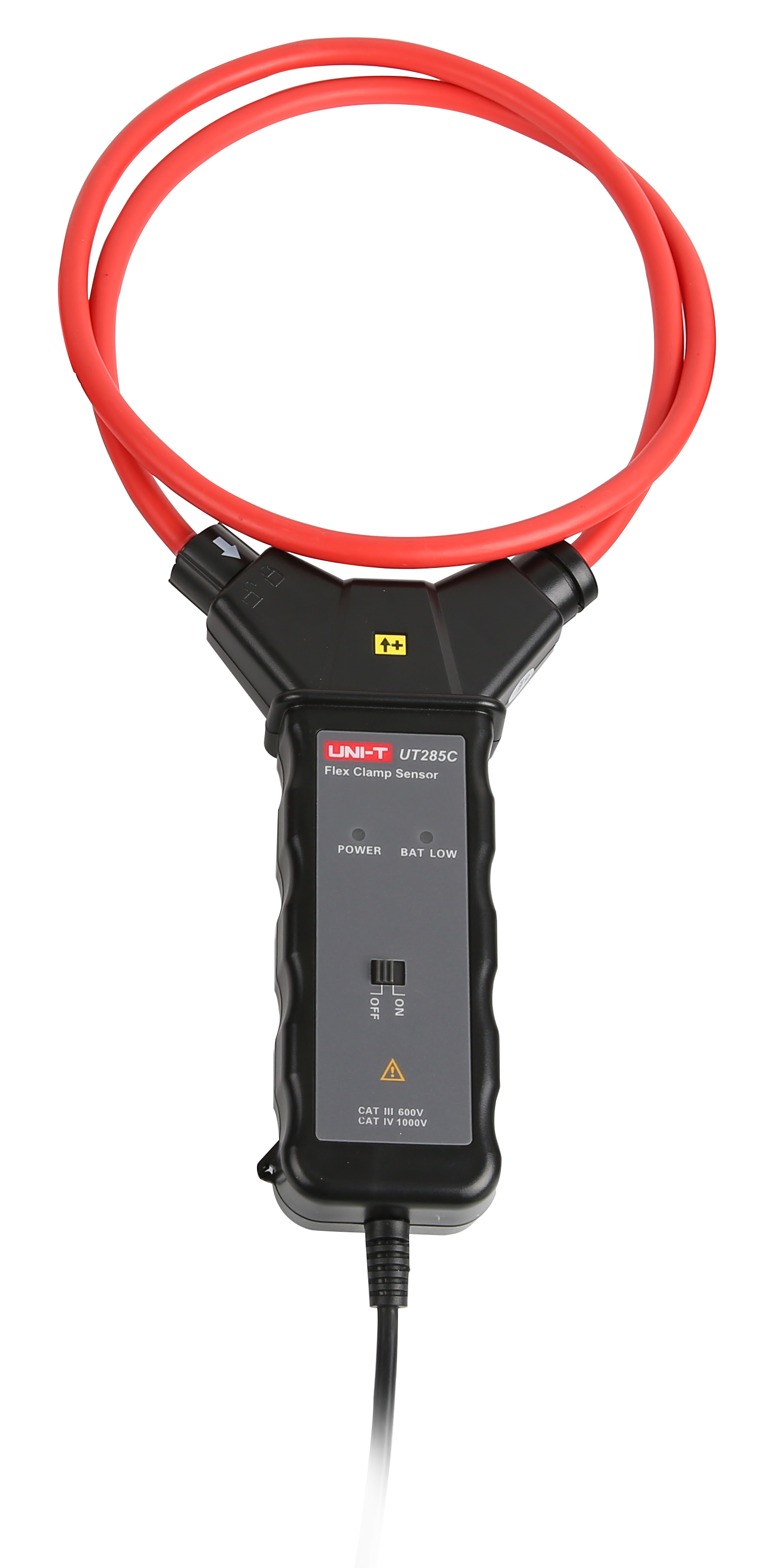

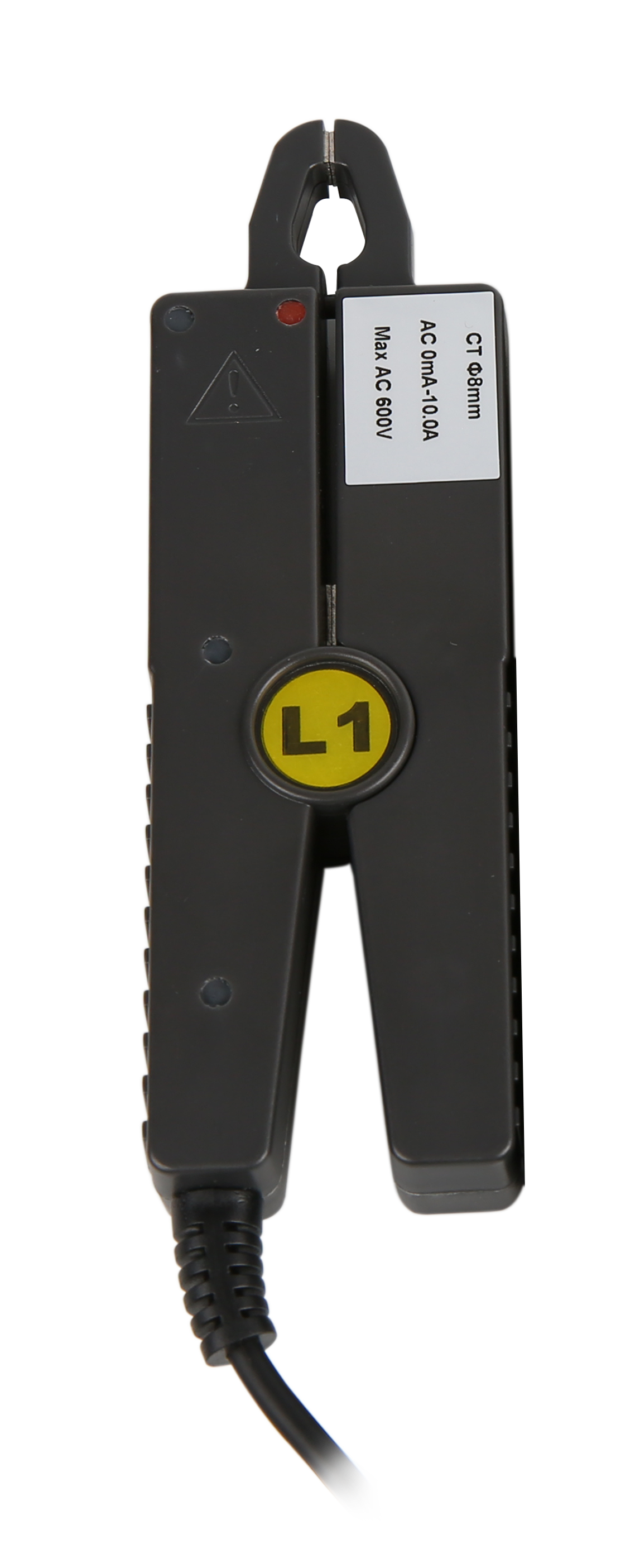

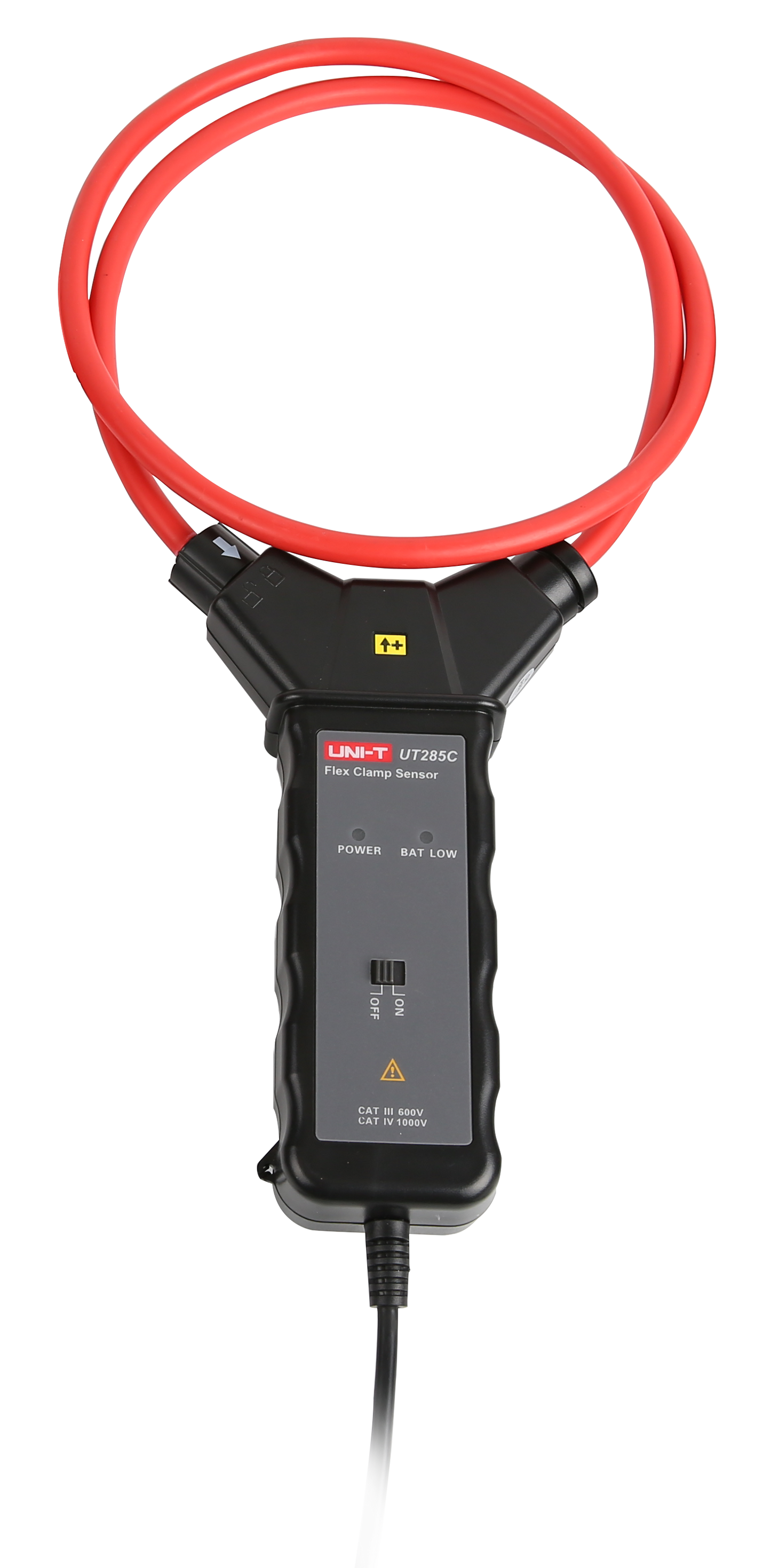

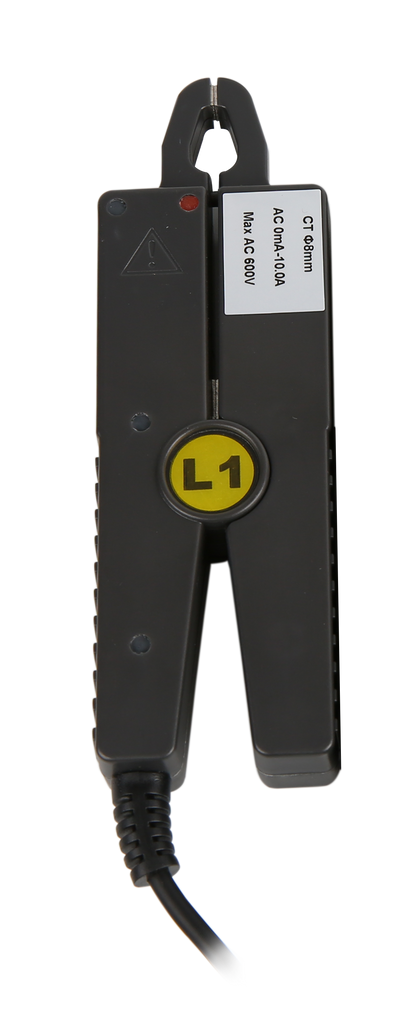

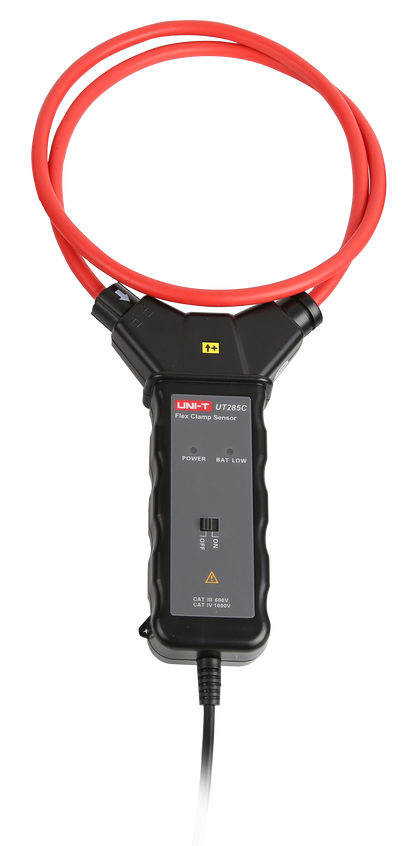

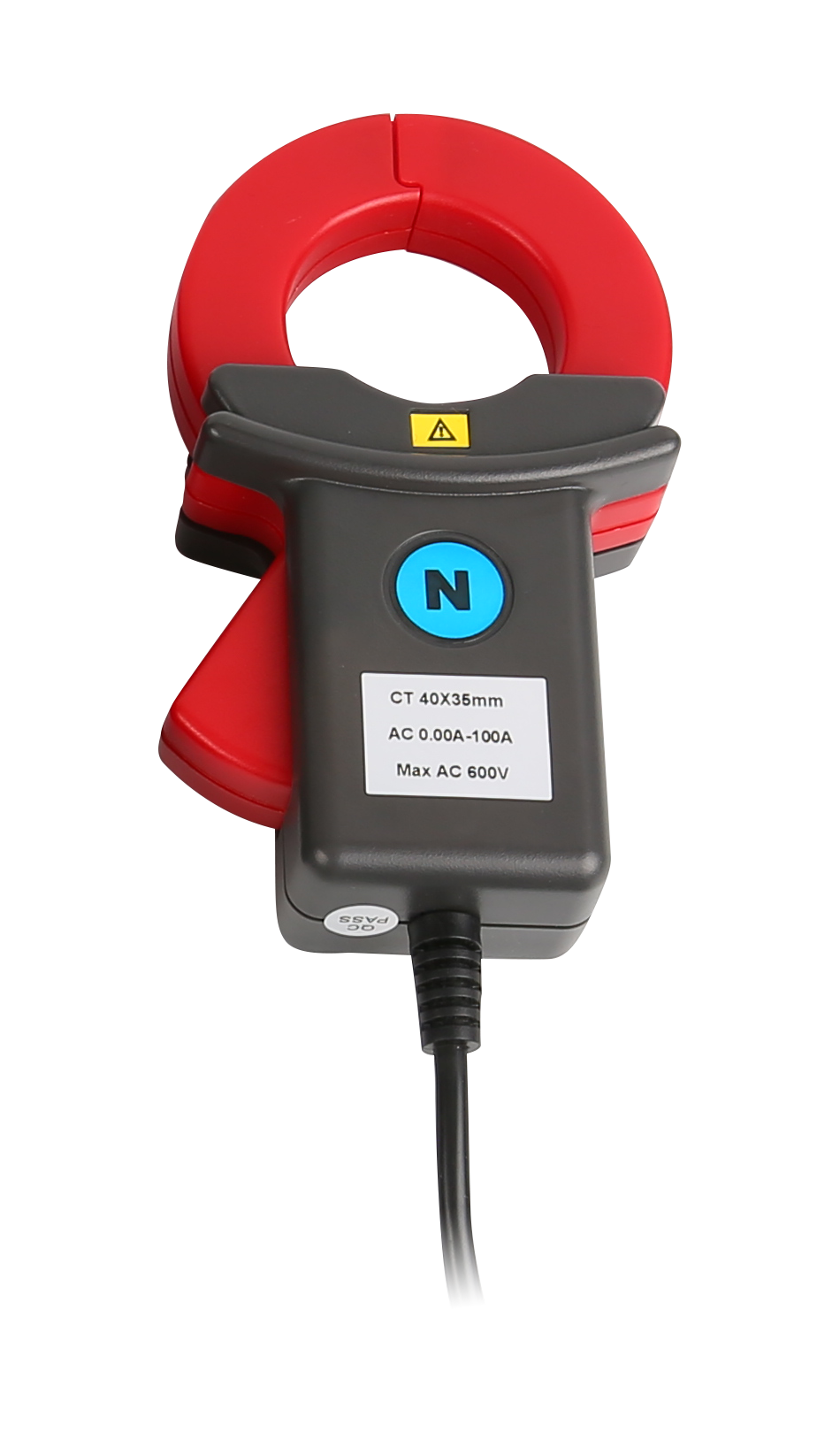

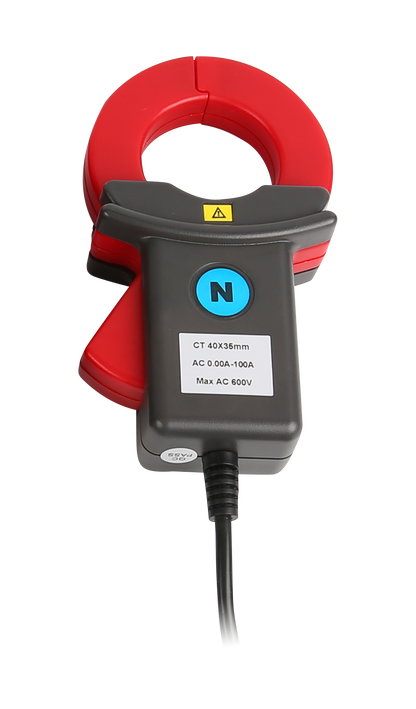

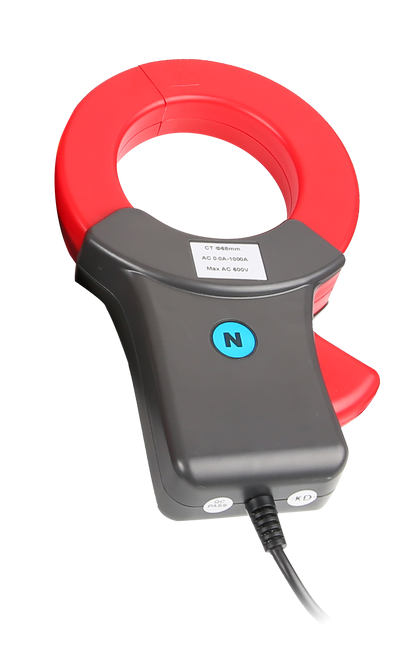

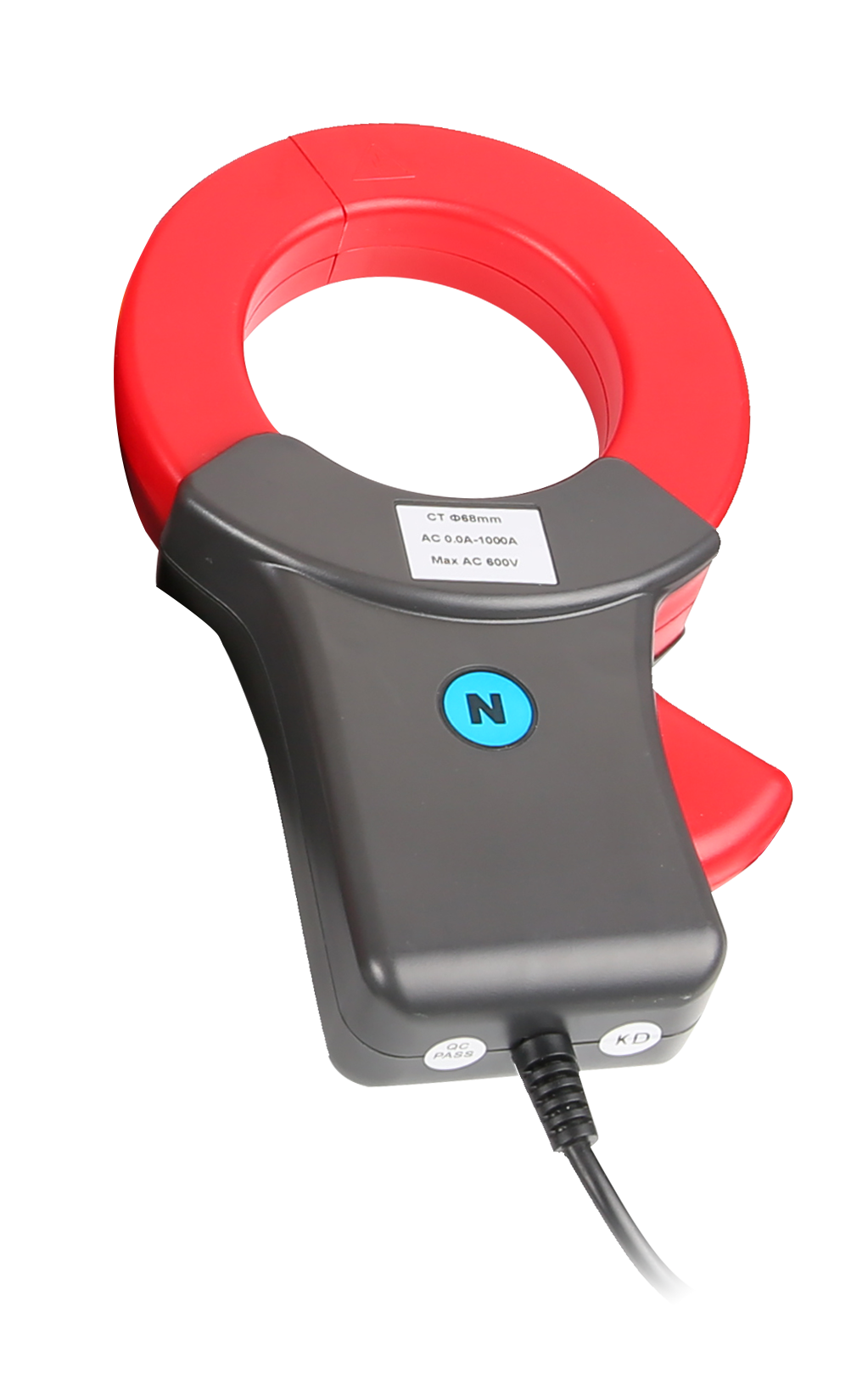

 True RMS current Various current clamp options from 10mA to 6000A
 Peak of phase-to-neutral voltage 1.0V~ 1414V ±(1.0%+5dgt)
 Peak of phase-to-phase voltage 1.0V ~ 2828V ±(1.0%+5dgt)
 Current peak 10mA ~ 6000A ±(1.0%+5dgt)
 Active power 0.000W~ 9999.9kW ±(1%+3dgt)
 Reactive power, inductive or capacitive 0.000RVA~ 9999.9kVAR ±(1%+3dgt)
 Apparent power 0.000VA~ 9999.9kVA ±(1%+3dgt)
 Power factor -1.000~ 1.000 ±(1.5%+3dgt)
 Phase angle -179°~ 180° ±(2°)
 Energy parameters Wh, Varh, Vah
 Harmonic ratio 0.0%~ 99.9% ±(1%+5dgt)
 Transformer K factor 1.00~ 99.99 ±(5%)
 Product color Red and grey
 Product size 240mm × 170mm × 68 mm
 Product net weight 1.6kg
