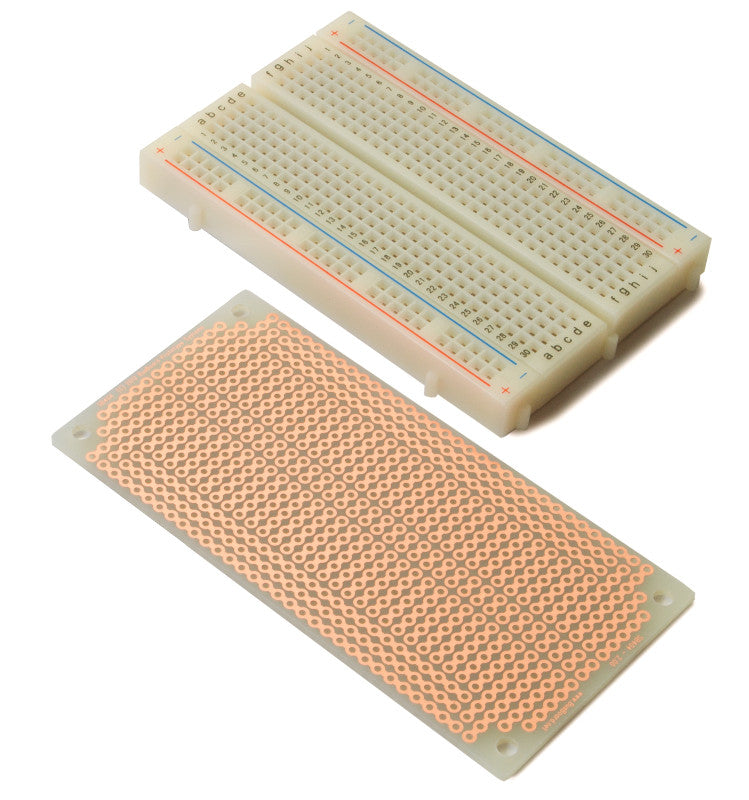

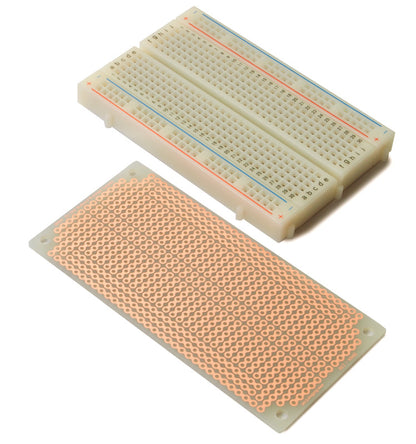

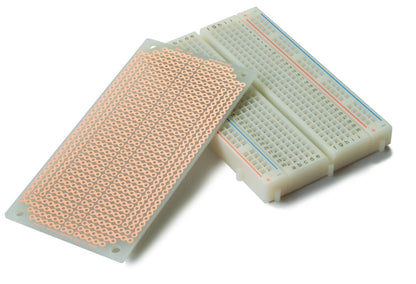

KIT-BB400+SB400 BreadBoard-400 with SB404 Solderable PC BreadBoard

KIT-BB400+SB400 BreadBoard-400 with SB404 Solderable PC BreadBoard

SKU: SKU: KIT-BB400+SB404   Download PDF

Qty:
Regular price Now $9.50   Web pricing policy
Regular price BEFORE   Sale price Now $9.50 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

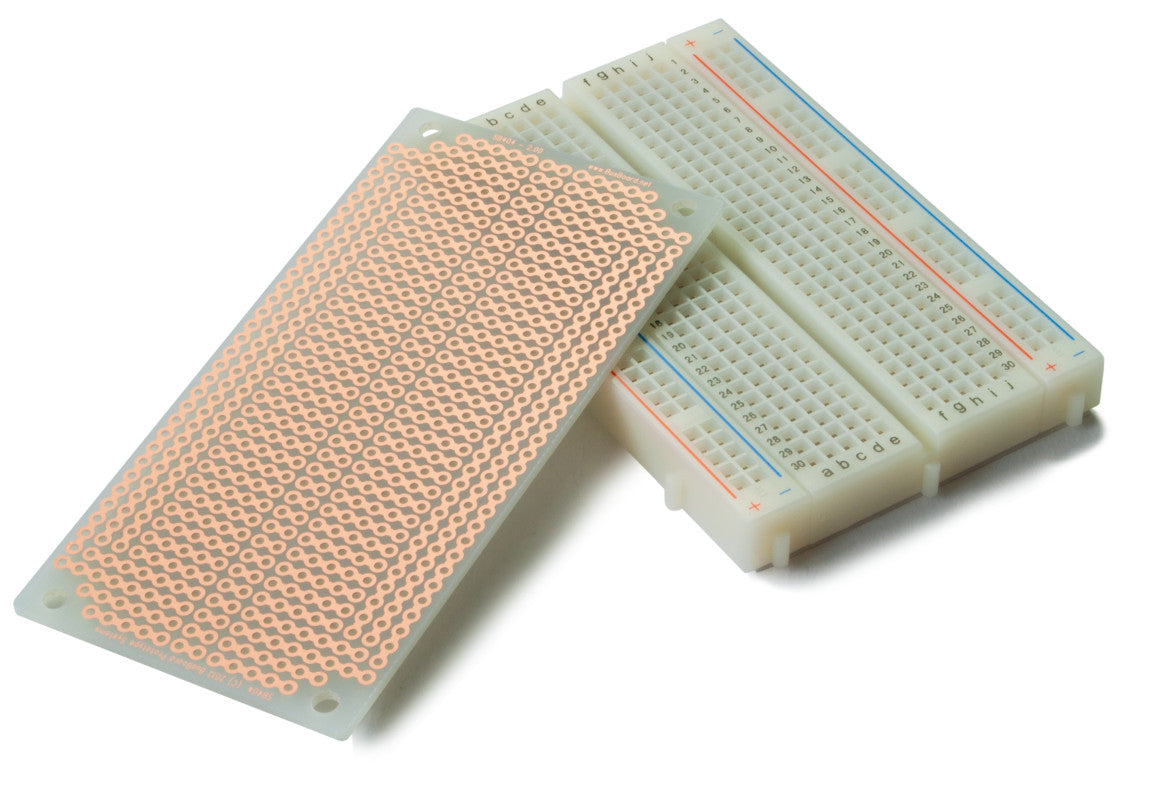

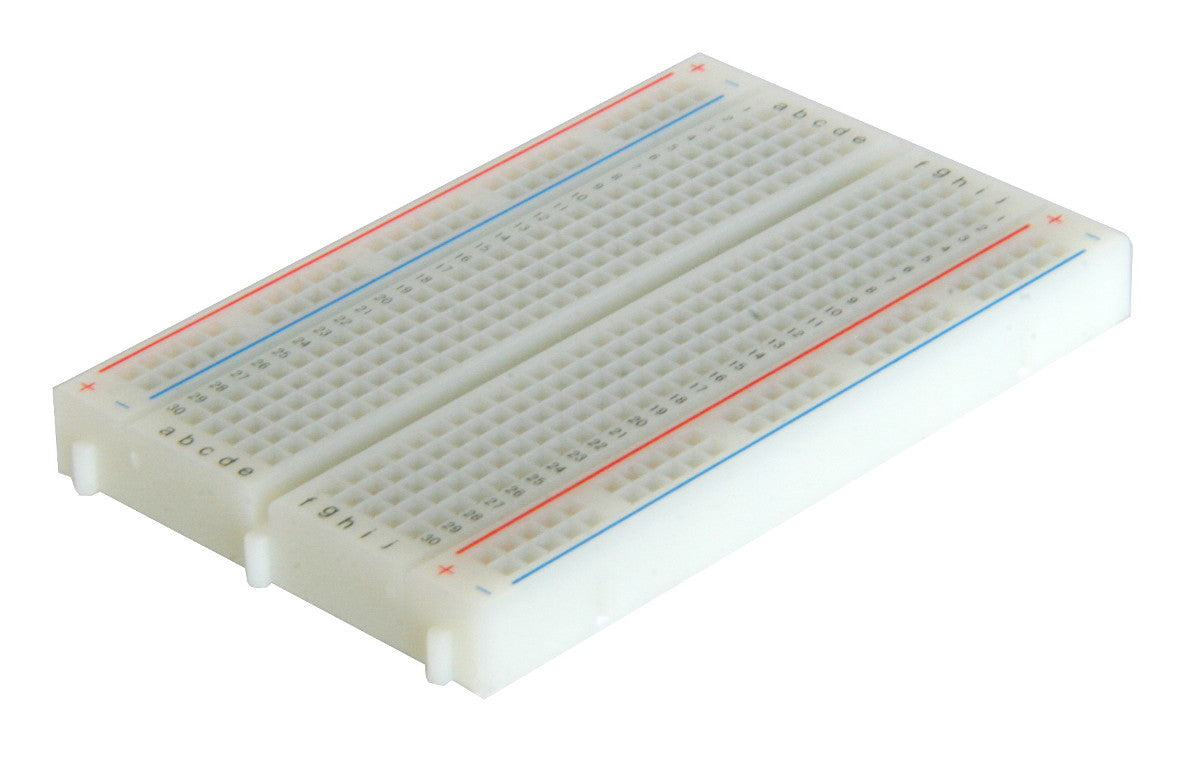

BreadBoard-400 is a solderless (plug-in) breadboard with 400 connection tie-points (ie 400 wire insertion holes) It has 4 power rails Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed They are completely re-usable The BB400 has a 300 tie-point IC-circuit area plus four 25 tie-point power rails The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows.

The internal contacts are phosphor bronze with a plated nickel finish A peelable adhesive tape backing is provided for attaching it to a surface BPS BreadBoards are Lead-Free and RoHS Compliant Finished projects can be moved to a SB400 or SB404 Solderable PC BreadBoard to make them permanent The SB404 Solderable PC BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout.

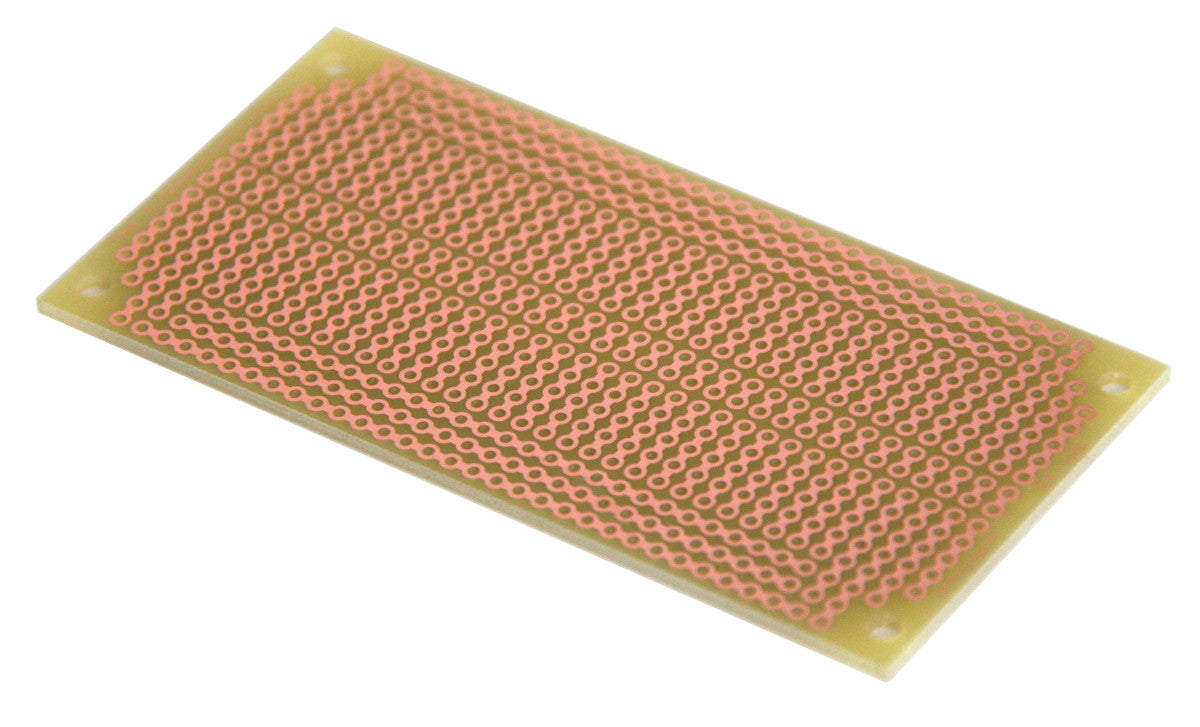

The SB404 has the same pattern as a standard 400 connection point BB400 solderless plug-in breadboard It has a standard 5-hole strip for each IC pin, just like solderless breadboards plus 4 power rails However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts The SB404 has four power rails like solderless breadboards, plus two bonus rails for power or signals.

There are bonus two-hole pads along the centerline allowing DIL (dual in-line) headers to be used A top side silkscreen helps to position components Four mounting holes allow your projects to be secured BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life An anti-tarnish coating protects the copper for a long shelf-life and provides easy soldering BPS boards are lead-free and RoHS compatible.

Features and Benefits:

    •400 tie points total: 300 tie-point IC-circuit area plus two 50 tie-point distribution strips providing 4 power rails.

    •ABS plastic body with black printed legend and color legend on distribution strips.

    •Contacts made of Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.

    •Rated at 36 Volts, 2 Amps.

    •Insertion Wire Size is 21 to 26 AWG with diameter of 0.016 to 0.028 inches (0.4 to 0.7mm).

    •Peelable adhesive tape backing provided for attaching to a surface.

    •Same pattern as a standard 400 connection point solderless plug-in breadboard.

    •Single-sided high-quality FR4 glass-epoxy circuit board with top side silkscreen.

    •1oz/ft2 copper with an anti-tarnish coating for easy soldering.

    •Lead free and RoHS compatible.

Specifications:

 Size: 3.3 x 2.1 x 0.3 inches (84 x 54.3 x 8.5mm)
 Dimensions: 3.75 x 1.85 inches (95.3 x 47.0mm), 1/16 inch thick (1.6mm)
 Mounting Holes: Four 0.125” mounting holes
 Copper: 1oz/ft2 with anti-tarnish coating
 Hole Centers: 0.042" holes drilled on 0.1" (2.54mm) centers
