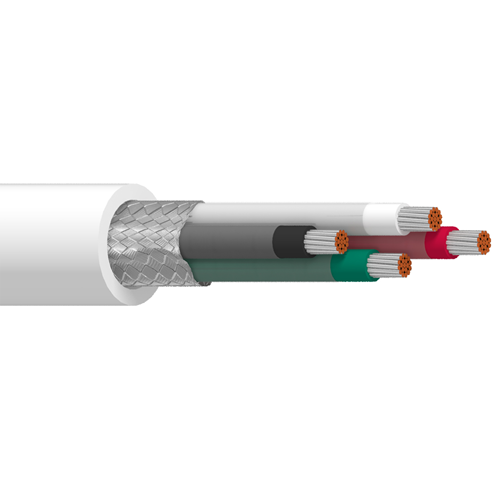

Belden 9954 16 AWG 4 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 4 Conductor 16 AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid (90%) Shield, PVC Outer Jacket.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.012 in (0.30 mm)
• Nom. Insulation Diameter: 0.088 in (2.2 mm)

Outer Shield:

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%
• Tinned copper braid shield (90% coverage).

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.027 in (0.69 mm)
• Nom. Diameter: 0.291 in (7.39 mm)
• Overall Cable Diameter (Nominal): 0.291 in (7.39 mm)

Standards:

• Voltage Rating: 600 V.
• Operating Temperature Range: -20°C to +105°C.
• Military Compliance: MIL-W-16878E/17 (insulated conductor)

Applications:

• MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control
