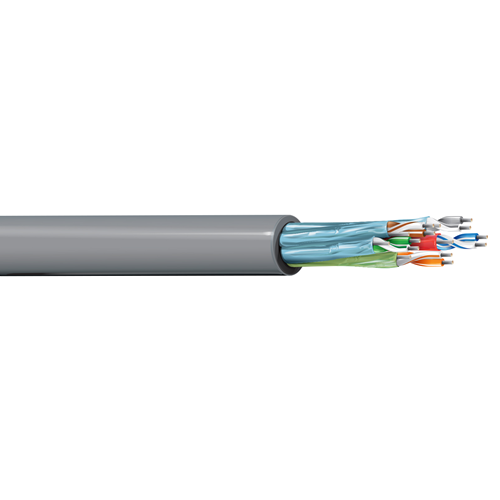

Belden 89705 24 AWG 5 Pair 7x32 Stranding Tinned Copper 300 V Digital Audio Cable

Description:

Computer EIA RS-232/422, Digital Audio Cable, 5-Pair, 24 AWG stranded (7x32) tinned copper conductor, foam FEP insulation, individually shielded pairs with Beldfoil (100% coverage), 24 AWG stranded tinned copper drain wire, overall fluorocopolymer jacket, plenum rated.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.019 in (0.48 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.327 in (8.31 mm)
• Overall Cable Diameter (Nominal): 0.327 in (8.31 mm)

Standards:

• Voltage Rating: 300 V.
• Impedance: 100 Ohm nominal impedance
• Operating Temperature Range: -40°C to +150°C.

Applications:

• extreme high temperature environments; RS-232 extended distance applications; RS-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); digital audio; panel wiring
