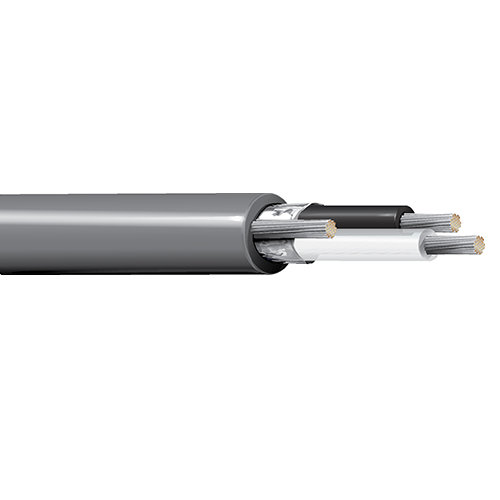

Belden 8719 16 AWG 2 Conductor 19x29 Stranding Tinned Copper 600V Electronic Cable

Description:

Electronic, 2 Conductor 16 AWG (19x29) Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Insulation Diameter: 0.122 in (3.10 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (16x30) TC
• Overall Beldfoil (Aluminum Foil-Polyester Tape).

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.032 in (0.81 mm)
• Nom. Diameter: 0.313 in (7.95 mm)
• Overall Cable Diameter (Nominal): 0.313 in (7.95 mm)

Standards:

• Impedance: 65 Ohm
• Voltage Rating: 600 V.
• Operating Temperature: -20°C to +80°C.

Applications:

• up to 600V analog signals ; up to 600V digital control ; line level audio; voice communications; panel wiring
