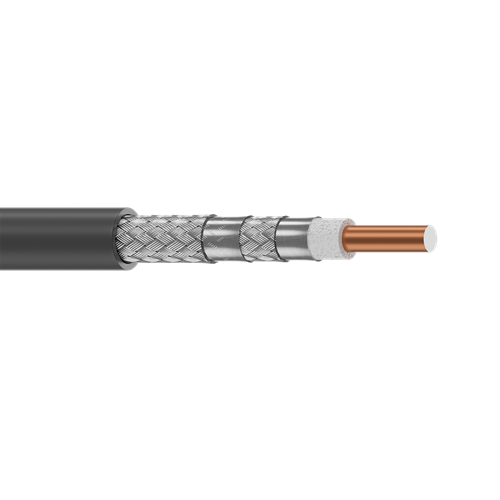

Belden 3092A 18 AWG 1 Conductor Solid RG-6 75 Ohm ControlBus Coax Cable

Description:

Coax RG-6 18 AWG (Solid) Bare Copper Covered Steel, Foam PE Insulation, Overall Duobond II+Aluminum Braid(60%)+Duofoil+Aluminum Braid (40%) Shield, PVC Outer Jacket, CMR.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.180 in (4.57 mm)

Outer Shield:

• Layer 1: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage 100%

• Layer 2: Outer Shield Type Braid, Aluminum Material, Coverage 60%

• Layer 3: Outer Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage 100%

• Layer 4: Outer Shield Type Braid, Aluminum Material, Coverage 40%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.303 in (7.70 mm)
• Overall Cable Diameter (Nominal): 0.303 in (7.70 mm)

Applications:

• Harsh environment, factory automation, ControlNet, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications
