    Product Details

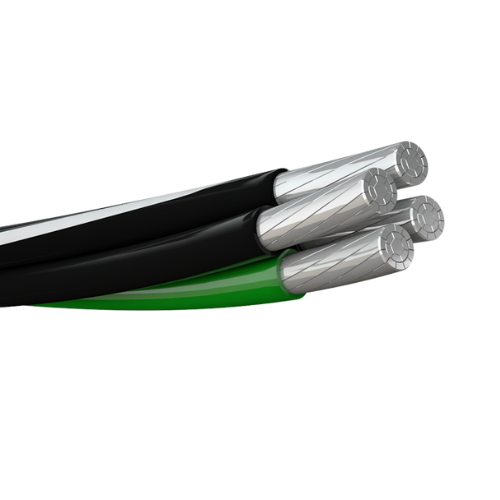

    Quadruplex Aluminum Mobile Home Feeder cable is a 4-conductor assembly, consisting of 2 phase conductors, 1 neutral messenger wire, and 1 ground wire.  The conductors are made of RHH, RHW-2, or USE-2 compact stranded AA-8000 aluminum alloy.  The compact stranding of the Quadruplex Aluminum Cable Type Mobile Home Feeder MHF cable is designed to reduce the diameter of the conductors.  The process of compact stranding reduces the diameter of the cable by 9-10%.  The conductors are insulated with a crosslinked polyethylene (XLP) jacket that protects them from sunlight, heat, dryness, moisture, and other corrosive elements.  The conductors’ insulation is color coded for identification; the neutral messenger wire is white, and the ground wire is green.

    The Quadruplex Aluminum Cable Type Mobile Home Feeder cable is designed to act as a service entrance cable to deliver power to a mobile home unit.  The mobile home feeder is typically used within an electrical raceway such as conduit.  Conduit is a tube or trough that channels the conductors and protects them from weather or objects that may interfere with their path.  The Quadruplex Aluminum Cable Type Mobile Home Feeder cable is most commonly installed underground.  The product is suitable for direct burial but can also be installed in raceway.

    Item # Phase Conductor Diameter (mils) Weight Per 1000 feet (lbs.) Allowable Ampacity
    Size (AWG)
    Strand-
    ing
    Insul. Thick. (mils)
    Comp-
    lete Cable
    In Ducts
    QUADRUPLEX WITH YELLOW EXTRUDED STRIPE NEUTRAL
    2-2-4-6 2 7 .391 944 305 100
    2-2-2-4 2 7 .391 944 351 100
    2/0-2/0-1-4 2/0 7 .566 1301 561 150
    2/0-2/0-2/0-1 2/0 18 .566 1301 679 150
    4/0-4/0-2/0-4 4/0 18 .672 1540 793 200
    4/0-4/0-4/0-2/0 4/0 18 .672 1540 999 200
