50716-000 Contact Blocks
50716-000 Contact Blocks
SKU: SKU: 50716000 Download PDF
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

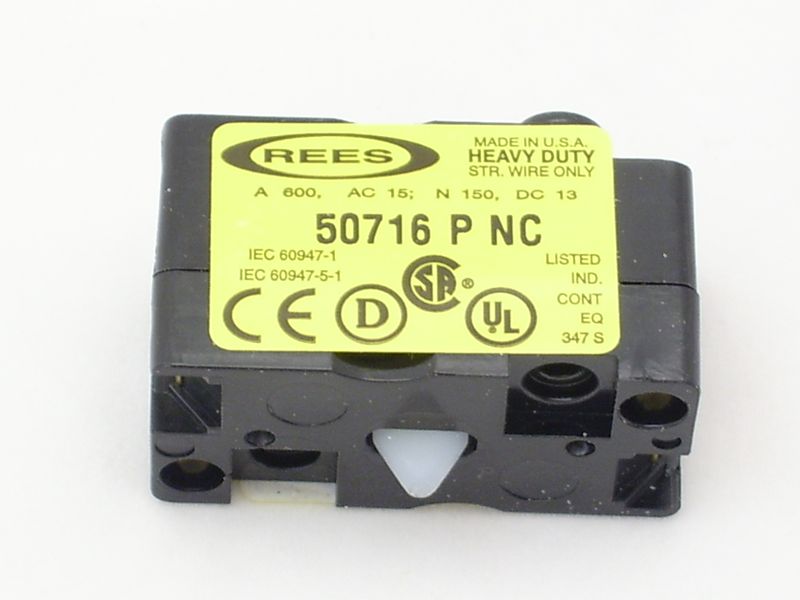

This contact block is designed for use on ALL REES push button operators and selector switches Each captive terminal on the contact block will accept (2) #14 AWG stranded wires Gold plated contacts eliminate high resistance tarnishing.
Features and Benefits:
•Each captive terminal accepts (2) #14 AWG stranded wires.
•Gold plated contacts eliminate high resistance tarnishing.
Specifications:
| Electrical Ratings | HEAVY DUTY – A600 / N150 |
| Listed under UL 508 | File # E 58589 |
| Certified under CSA C22.2 | File # LR 3648 |
| CE Compliant | IEC/EN 60947-5-1 |
| Environmental Temperature Range | Operating: +32 F to + |
| Normal Function | Closed |
| Stroke | 0.24 in. to Open |
| Block Height | 0.95 |
