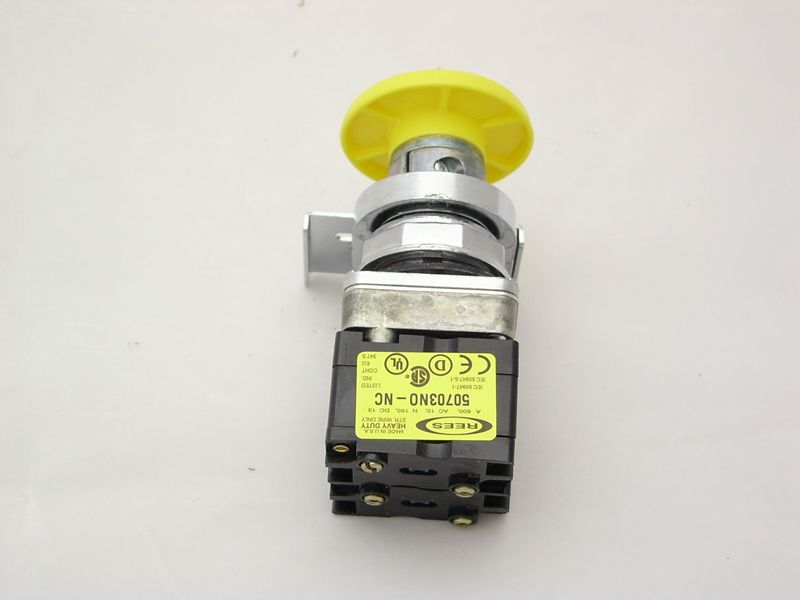

40102-124 30.5mm Mushroom and Rope Pull Operators
40102-124 30.5mm Mushroom and Rope Pull Operators
SKU: SKU: 40102124 Download PDF
Couldn't load pickup availability
The 305mm Mushroom and Rope Pull Operator is a hand-operated control circuit device, rated as 'Heavy Duty' for use with electromagnetic equipment The operator features a body made from die-cast zinc Its yellow mushroom ergonomic plunger is created from DuPont Delrin 100ST Acetal, enhancing impact resistance This product is designed to facilitate effective control mechanisms in various settings.
Features and Benefits:
•Body made from die-cast zinc.
•Yellow mushroom ergonomic plunger molded from DuPont Delrin 100ST Acetal for improved impact resistance.
•Nema 12/13, IP 65 rated.
•Positive Break, Gold Plated Contacts.
•Includes Sliding Padlock Attachment.
Specifications:
| Color | Yellow |
| Size | 2.00 in. Plastic Mushroom |
| Padlock Feature | Yes |
| Switch Type | Maintained |
| Operating Force | 8.0 lb |
| Contact Block(s) Included | (2) 50703 (2) NO/NC |
| Operating Type | Maintained |
