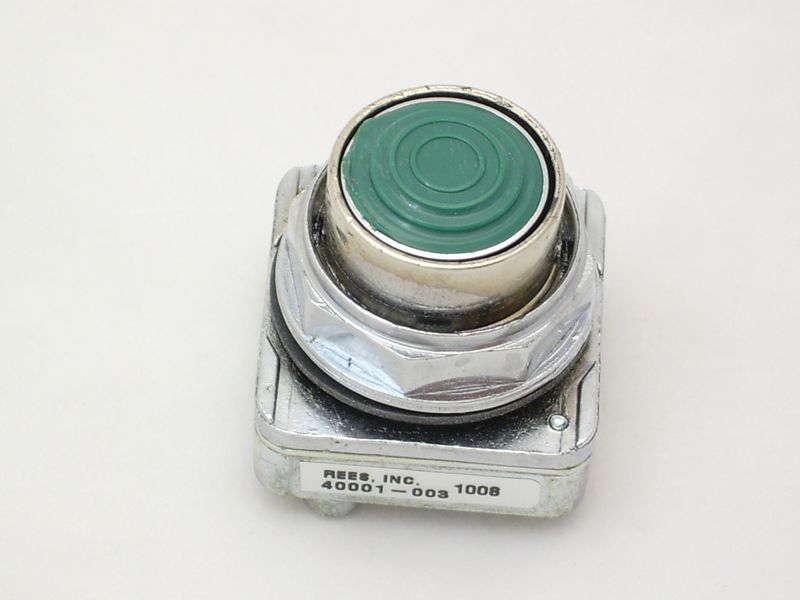

40001-003 30.5mm Push Buttons

40001-003 30.5mm Push Buttons

SKU: 40001003   Download PDF

Qty:
Now $54.21   Web pricing policy
BEFORE   Now $54.21 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The 305mm Push Button switch is a hand-operated control circuit device rated for heavy-duty applications, typically used with electromagnetic equipment The body and plungers are constructed from die-cast zinc, with the plungers featuring a green plastic (poly-carbonate) insert It is designed for robust performance with a Nema 12/13 and IP 65 rating for dust and water resistance Each operator can accommodate up to three tiers of two contact blocks, allowing for a total of six separate circuits.

Features and Benefits:

    •Constructed from durable die-cast zinc.

    •Rated for heavy-duty applications.

    •Nema 12/13, IP 65 rating for protection.

    •Accepts up to three tiers of two contact blocks.

    •Designed for electromagnetic equipment.

Specifications:

 Plunger Color: Green
 Plunger Material: Chrome w/ Plastic Insert
 Plunger Size, Style: 1.00" Standard
 Operating Force: 2.00 lb plus 0.75 lb per contact block
 Operating Type: Momentary
 Old Catalog Number: R1->R4
