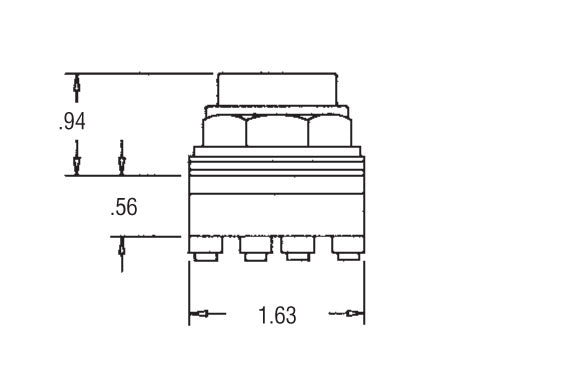

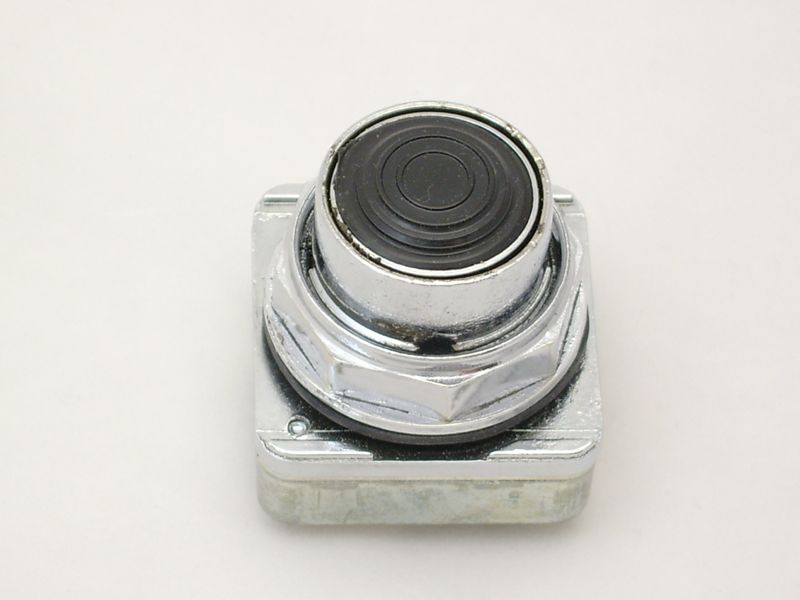

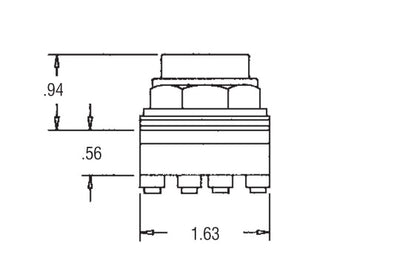

40001-001 30.5mm Push Buttons

Description:

The 305mm Push Button switch is a hand-operated, control circuit device rated 'Heavy Duty,' designed primarily for use with electromagnetic equipment Its body and plungers are composed of die-cast zinc, with a black plastic (poly-carbonate) insert in the plunger This device meets Nema standards 12/13 and has an IP rating of 65 Each operator can accommodate three tiers of two contact blocks, allowing for a total of six separate circuits.

The switch is supplied with all necessary components.

Features and Benefits:

•Hand-operated control circuit device rated 'Heavy Duty'.

•Body made from die-cast zinc.

•Plungers also made from die-cast zinc with black plastic insert.

•Nema 12/13, IP 65 rated for durability.

•Each operator accommodates up to six separate circuits.

•Control circuits for electromagnetic equipment.

Specifications:
