  • 4/0 AWG 1 Conductor Type P Power Cable 2000V
1 2

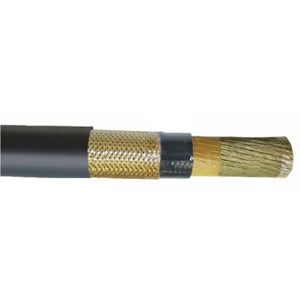

4/0 AWG 1C Type P Unarmored 2000V Power Cable

4/0 AWG 1C Type P Unarmored 2000V Power Cable

SKU: NESP201X7

Select a gauge:
  • 4/0 AWG 1C Type P Unarmored 2000V Power Cable
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $11.53 /FT   Web pricing policy
BEFORE   Now $11.53 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Applications Features Specifications Reviews
Product Information

Allowable Ampacity For 4/0 AWG 1C Type P Unarmored 2000V Power Cable : 351 Amps at 110ºC

Also Known As:
4/0 AWG 1C Type P Power cable is specifically designed for rigorous offshore applications. It can transmit large amounts of current which is 2000 volts, therefore it is recommended for heavy duty power supply. This cable is coated with tin which ensures great thermal performance and reduces corrosion.

Conductors:
The conductor is made of soft annealed tinned copper per IEEE 1580 Table 11. It is flexible due to the many strands and the annealed copper.

Insulation:
Conductors of the Type P cable are insulated using cross-linked polyolefin. This material is tough which makes it suitable for harsh environments.

Jacket:
The jacket is made of black, arctic grade PVC. It protects the cable construction from all forms of external forces.

Features:
• The cable has lots of strands which increase its conductivity and flexibility
• Flame retardant cable: IEC 60332-3 Category A and IEEE 1202
• Emits little or no toxic gases during a fire
• Lower dielectric constant and higher insulation resistance reduces electrical losses
• Dual certified IEEE 1580 Type P and UL 1309/CSA C22.2 No. 245
• Highest ampacity ratings: ABS 100°C, DNV 95°C, LRS 95°C
• Severe cold durability: exceeds CSA cold bend/cold impact (-40/-35°C)

Industrial Approvals:
• CSA Listed as marine shipboard cable
• United States Coast Guard
• American Bureau of Shipping
• Lloyd’s Register of Shipping
• Transport Canada
• Det Norske Veritas (DNV)
• Underwriters Lab Listed
• NVE 95/1696, FAL
• IEEE 1580 Type P

Technical Specifications:
Catalog Number HW261 40101
Size AWG 4/0
mm2 109
Nominal Diameter (inches) 0.810
Weight (lbs/Mft.) 820
Inductive Reactance (Ohms/1000 ft.) 0.033
DC Resistance at 25° C (Volts/Amp/k ft.) 0.145
AC Resistance at 110°C (Ohms/k ft.) 0.056
Voltage Drop at 110°C (Volts/Amp/1000 ft.) 0.080
Ampacity Free Air 110°C 528
Ampacity 110°C 376
Ampacity 100°C 351
Ampacity 95°C 335
Applications
Type P Drilling Rig Marine Power Cable is an electrical cable designed for power applications in offshore and onshore drilling and petroleum facilities. Type P cables demonstrate excellent capacity in demanding conditions, including extreme cold, heat, vibration, drilling, corrosion, and mechanical stress.The electrical cables are flame-retardant and resistant to moisture. The voltage rating is 2000 V.

• Offshore drills and petroleum facilities
• Marine shipboard cable
• A/C Motor power
• Transformer feeders
Features
Standards:

• IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011)
• TYPE P INSULATION: IEEE 1580, UL 1309 TYPE X110
• TYPE N SHEATH: IEEE 1580, UL 1309
• FLAME RETARDANT: IEEE 1202 VW-1, IEC 60332-3 CAT. A
• FIRE RESISTANT: IEC 60331-1/2/21 (OPTIONAL)
• COLD BEND/IMPACT: CSA 22.2 NO. 03 (-40°C/-35°C)
Specifications
• Size: 4/0 AWG
• Conductor: 1 C
• Nominal OD: 0.823
• Weight: 813 Lbs/Mft
• Ampacity: 351
