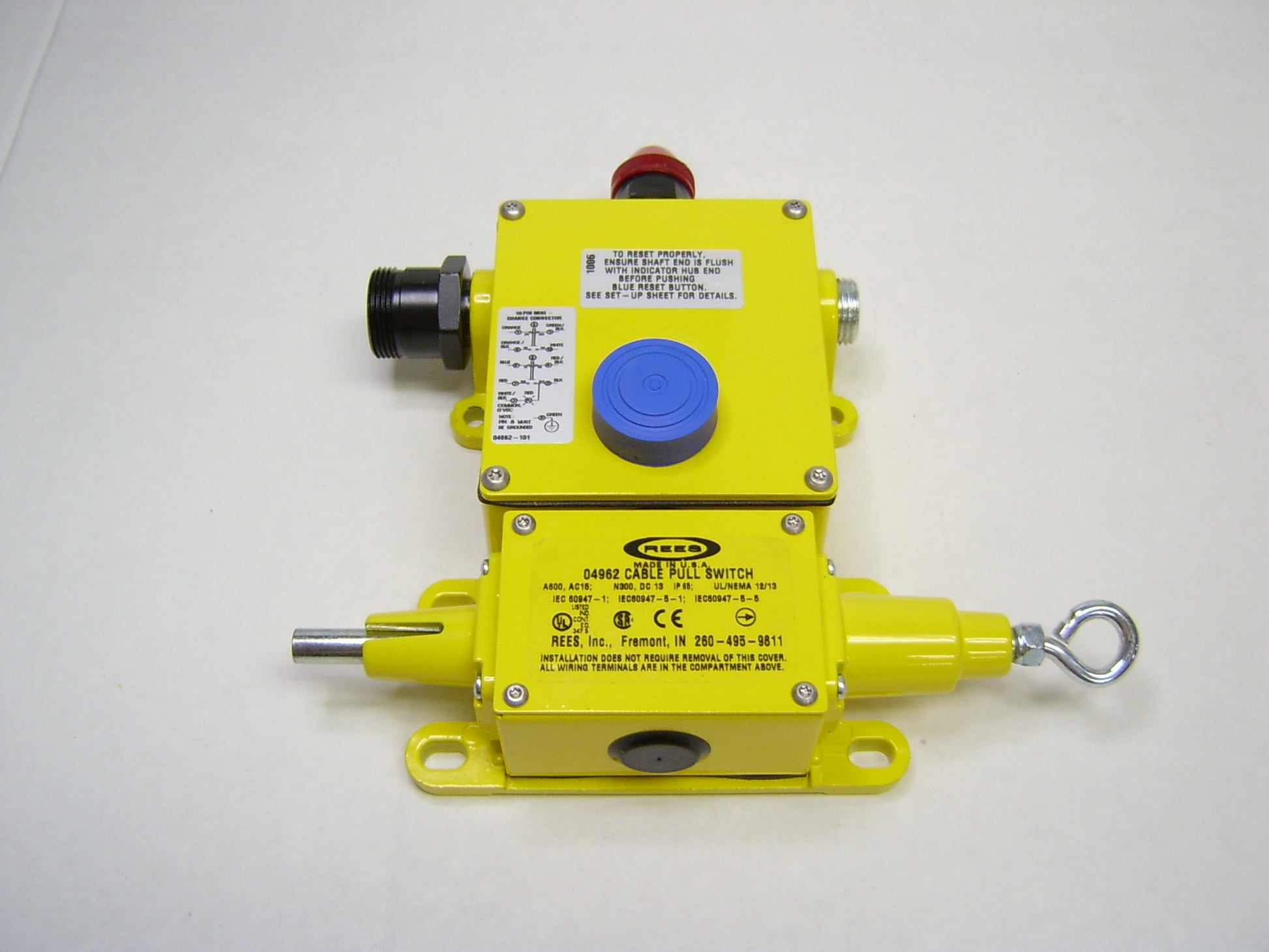

04962-102 Cable/Rope Operated Switches with Broken Cable Detection

Description:

The Cable/Rope Operated Switches with Broken Cable Detection features a taut cable style switch that includes 2 normally open and 2 normally closed contacts, equipped with Positive Break and Positive Transfer capabilities This design is particularly effective for applications involving Emergency Stop as well as standard circuit control The switch is easy to install due to its pre-wired 12-pin connector and comes with a red 24-volt indicator light making it user-friendly.

The housing is constructed from high-quality die-cast aluminum, finished with a powder coating in yellow for durability and aesthetics.

Features and Benefits:

•2 NO and 2 NC contacts for flexible control options.

•Positive Break and Positive Transfer features for added safety.

•Pre-wired with a 12-pin connector for easy installation.

•Equipped with a red 24-volt indicator light.

•Robust housing made of die-cast aluminum with a yellow powder coat finish.

•Emergency Stop applications.

•Ordinary circuit control.

Specifications:
