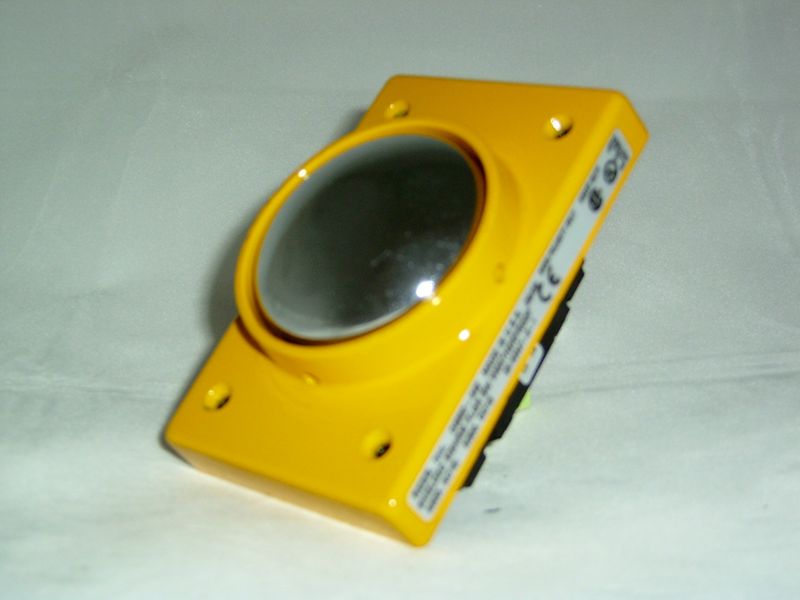

04960-442 2.25 inch Mushroom Plunger with Shield and Weatherproof

04960-442 2.25 inch Mushroom Plunger with Shield and Weatherproof

SKU: SKU: 04960442   Download PDF

Qty:
Regular price Now $325.46   Web pricing policy
Regular price BEFORE   Sale price Now $325.46 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

This is a weatherproof hand-operated control circuit device, rated 'Heavy Duty' and typically used with electromagnetic equipment It features a Federal Yellow cover with a shield, made from die-cast zinc, and is completed with a dry powder paint finish The plunger head is constructed from chrome-plated steel Gold-plated contacts are included to prevent high resistance tarnishing This product meets Nema 4 and IP 66 standards and has captive terminals that accommodate (2) #14 AWG stranded wires.

Features and Benefits:

    •Weatherproof design suitable for heavy-duty use.

    •Federal Yellow cover with shield.

    •Chrome-plated steel plunger head.

    •Gold-plated contacts to eliminate high resistance tarnishing.

    •Meets Nema 4 and IP 66 standards.

    •Captive terminals accept (2) #14 AWG stranded wires.

    •Control circuit device for electromagnetic equipment..

Specifications:

 Plunger Color Chrome
 Cover Color Yellow
 Operating Force 1.5 lb

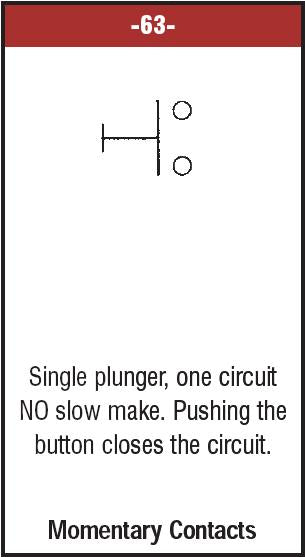

 Contact Arrangement #63 NO
 Contact Type Slow-Make
 Operating Type Momentary
 Approx. Shipping Weight 1.42 lb
