04938-300 Standard and Large Enclosures
04938-300 Standard and Large Enclosures
SKU: SKU: 04938300
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

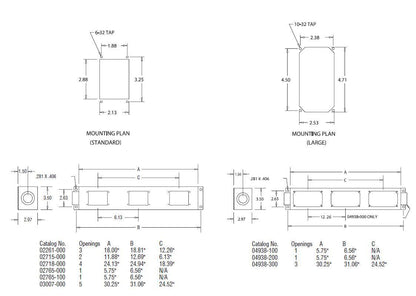

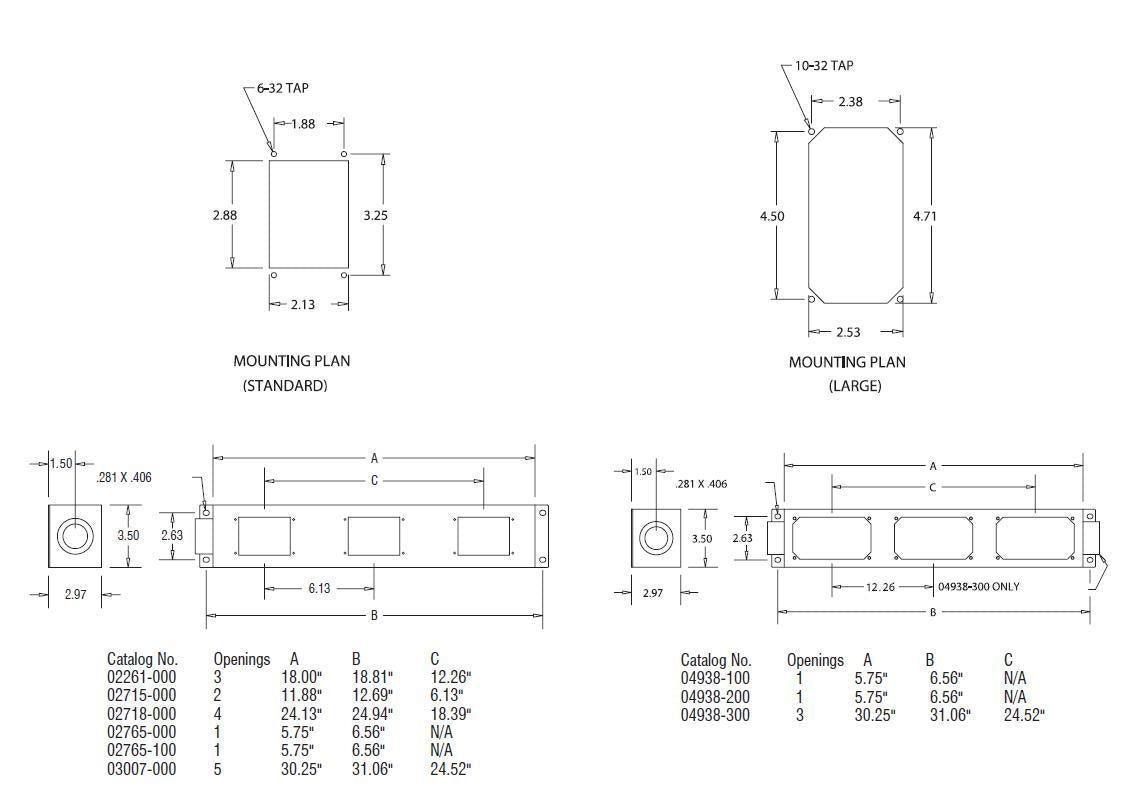

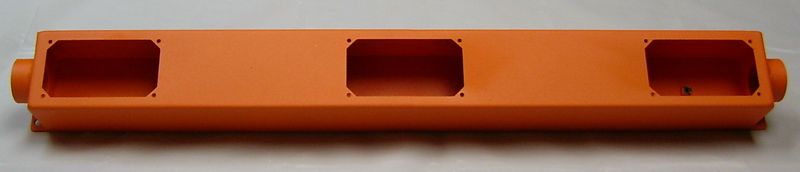

These enclosures are constructed from 14 GA sheet steel that is finished with a dry powder paint They are designed to accept all standard size REES push button switches, while the larger style switches from page 18 are suited for the 04938-’s group The 02765-100 one opening enclosure, painted yellow, is specifically suitable for accommodating an “Emergency Stop” switch These enclosures can be utilized to house any switch that conforms to the same mounting pattern.
They hold a rating of Nema 12/13.
Specifications:
| Number of Switch Openings | 3 Large |
| End Coupling Conduit Size | (2) 1.25" NPT |
| Color | Orange |
