04596-002 1.75 inch Mush Push-Pull

04596-002 1.75 inch Mush Push-Pull

SKU: 04596002   Download PDF

Qty:
Now $427.86   Web pricing policy
BEFORE   Now $427.86 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

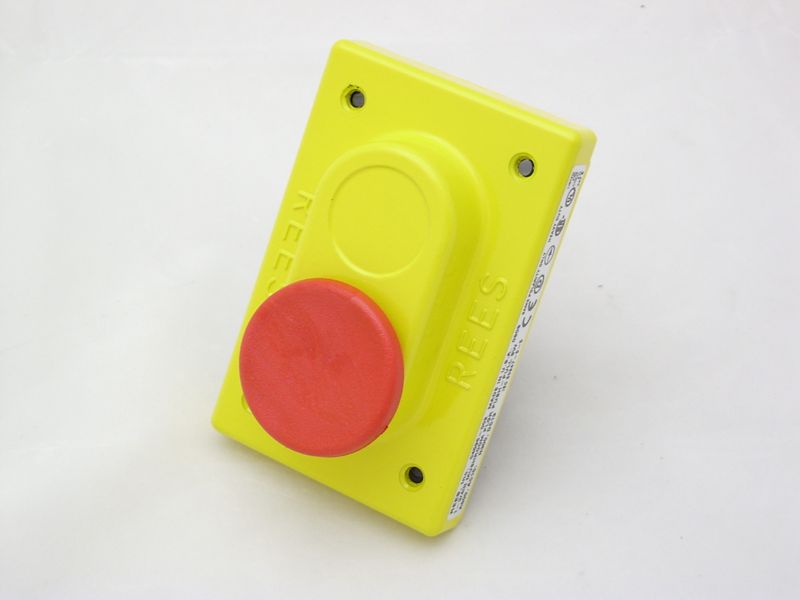

The 175 inch Mush Push-Pull is a hand operated, control circuit device rated 'Heavy Duty' for use with electromagnetic equipment It features a durable yellow cover made from die-cast zinc, painted with a dry powder finish, and a solid red plastic mushroom plunger head This switch has gold plated contacts that eliminate high resistance tarnishing, with a push for 'OFF' (contacts open) and a pull for 'ON' (contacts closed).

It meets Nema 12/13 and IP 65 standards for protection.

Features and Benefits:

    •Gold plated contacts to eliminate high resistance tarnishing.

    •Push 'OFF' action with contacts open and Pull 'ON' action with contacts closed.

    •Rated as 'Heavy Duty' for electromagnetic equipment use.

    •Die-cast zinc cover for durability.

    •Nema 12/13 and IP 65 certified for environmental protection.

Specifications:

 Plunger Color Red
 Cover Color Yellow
 Operating Force 10.0 lb

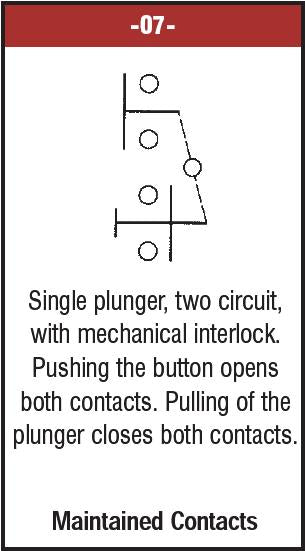

 Contact Arrangement #07 NC + NC
 Contact Type Slow-Make Slow-Break
 Operating Type Maintained
 Approx. Shipping Weight 1.40 lb
