03275-500 Rope Operated Switch (HEAVY DUTY - A600 / N300)

03275-500 Rope Operated Switch (HEAVY DUTY - A600 / N300)

SKU: SKU: 03275500   Download PDF

Qty:
Regular price Now $559.06   Web pricing policy
Regular price BEFORE   Sale price Now $559.06 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

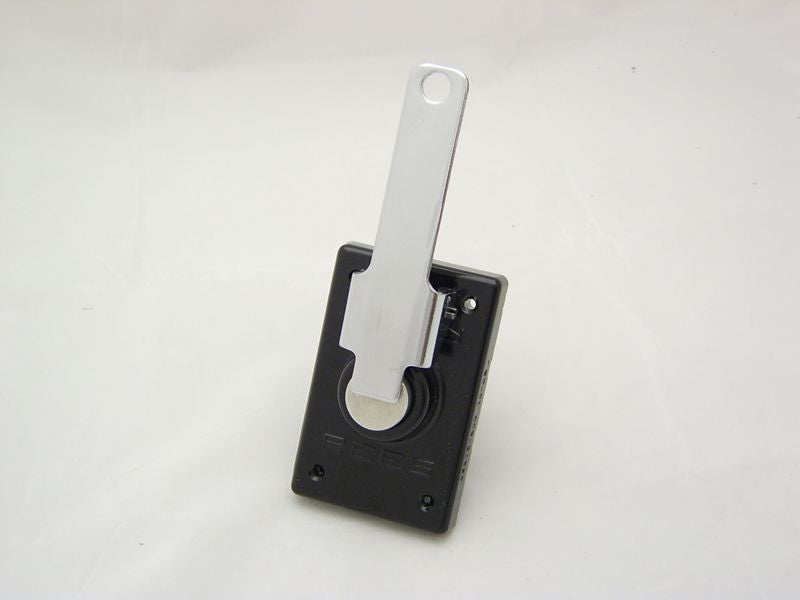

This switch is a slack cable style with 2 NO and 2 NC “Snap Action” contacts This switch does NOT provide “Positive Break” or “Positive Transfer” features and should only be used for non-emergency, normal start – stop applications This low activating force switch is basically a pushbutton device operated through a nickel plated operating lever attached to the cover Care must be taken when choosing and installing the operating rope because the low activating force needs to be considered.

Features and Benefits:

    •Low activating force switch.

    •Nickel plated operating lever.

    •Includes 2 NO and 2 NC “Snap Action” contacts.

    •Designed for non-emergency applications.

    •Easy installation with proper rope selection.

    •Normal start – stop applications.

    •Not suitable for emergency usage.

Specifications:

 Trip Force: 5 lb
 Operating Force Between 10 ft: 0.6 lb
 Operating Type: Momentary Snap Action

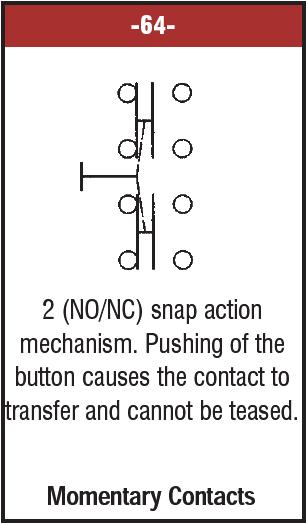

 Contact Arrangement: #64 2 NO + 2 NC
 Old Catalog Number: 3275
