03007-000 Standard and Large Enclosures
03007-000 Standard and Large Enclosures
SKU: SKU: 03007000
Couldn't load pickup availability
Description:

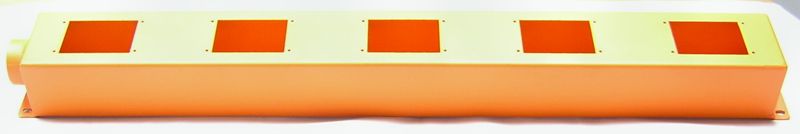

The Standard and Large Enclosures are designed from 14 GA sheet steel, coated with a dry powder paint They are categorized into two groups; the first can accommodate all standard REES push button switches, while the second group (the 04938-'s) is specifically crafted for larger style switches Notably, the 02765-100 model, which has one opening and is painted yellow, is particularly suited for housing an 'Emergency Stop' switch.
These enclosures are versatile and can house any switch sharing the same mounting pattern Furthermore, they are rated Nema 12/13.
Features and Benefits:
•Constructed from 14 GA sheet steel.
•Painted with dry powder paint for durability.
•Accommodates standard size REES push button switches.
•Special design for larger style switches.
•Model 02765-100 is suitable for 'Emergency Stop' switch.
•Rated Nema 12/13 for reliable performance.
Specifications:
| Number of Switch Openings | 5 Standard |
| End Coupling Conduit Size | 1.25" NPT |
| Color | Orange |
| Old Catalog Number | 2919 |
