02810-032 1.38 inch Double Plastic Plunger

02810-032 1.38 inch Double Plastic Plunger

SKU: 02810032   Download PDF

Qty:
Now $407.11   Web pricing policy
BEFORE   Now $407.11 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

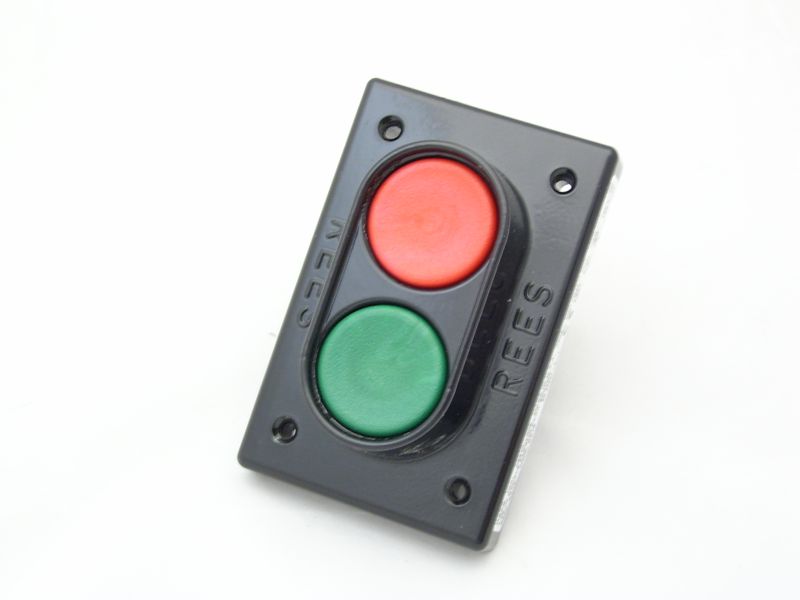

The 138 inch Double Plastic Plunger is a hand-operated switch that serves as a control circuit device, classified as ‘Heavy Duty’ and intended for use with electromagnetic equipment It features a black cover that is painted with dry powder paint and constructed from die-cast zinc The plungers, available in red and green, are manufactured from DuPont Delrin 100ST Acetal, providing enhanced impact resistance and maintaining solid colors throughout.

Features and Benefits:

    •Gold plated contacts to prevent high resistance tarnishing.

    •Nema 12/13, IP 65 rated for protection against dust and water.

    •Positive Break contact arrangement.

    •Slow-Make/Slow-Break operation.

    •Momentary operation for effective control.

Specifications:

 Plunger Color (Green Flush)
 Plunger Color (Red Flush)
 Cover Color Black

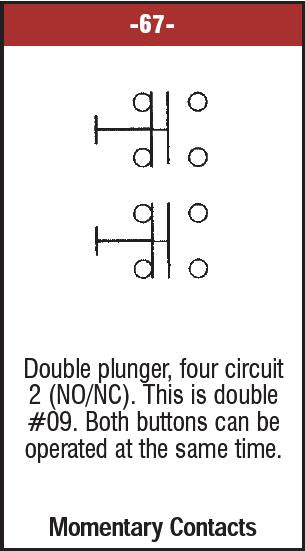

 Contact Arrangement #67 NO + NC + NO + NC
 Contact Type Slow-Make / Slow-Break Make Before Break
 Operation Momentary
