02761-003 2.25 inch Metal Mushroom Plunger

Description:

The 225 inch Metal Mushroom Plunger is a hand-operated control circuit device rated as 'Heavy Duty', specifically designed for use with electromagnetic equipment It features a yellow cover made from die-cast zinc, coated with dry powder paint, and a red mushroom plunger head also made from powder-painted zinc die-cast The device includes gold-plated contacts to prevent high-resistance tarnishing, ensuring reliable performance.

It is built to Nema 12/13 standards and has an IP 65 rating for dust and water resistance Each captive terminal can accommodate two #14 AWG stranded wires, making installation straightforward and efficient.

Features and Benefits:

•Designed for heavy-duty applications with electromagnetic equipment.

•Constructed with die-cast zinc for durable and long-lasting use.

•Equipped with gold-plated contacts to eliminate tarnishing.

•Rated Nema 12/13 and IP 65 for reliability in harsh environments.

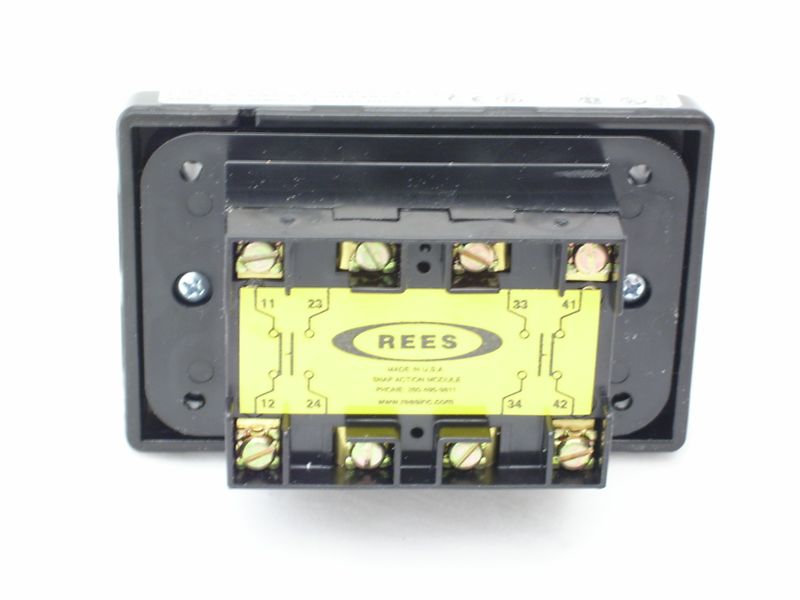

•Can accept two #14 AWG stranded wires at each terminal.

Specifications:
