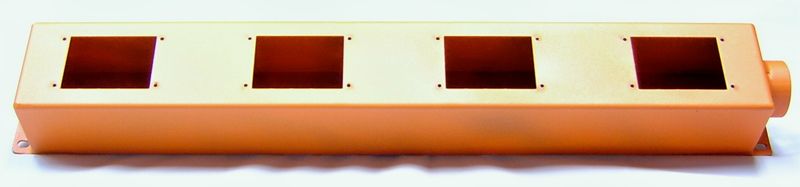

02718-000 Standard and Large Enclosures
02718-000 Standard and Large Enclosures
SKU: SKU: 02718000
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

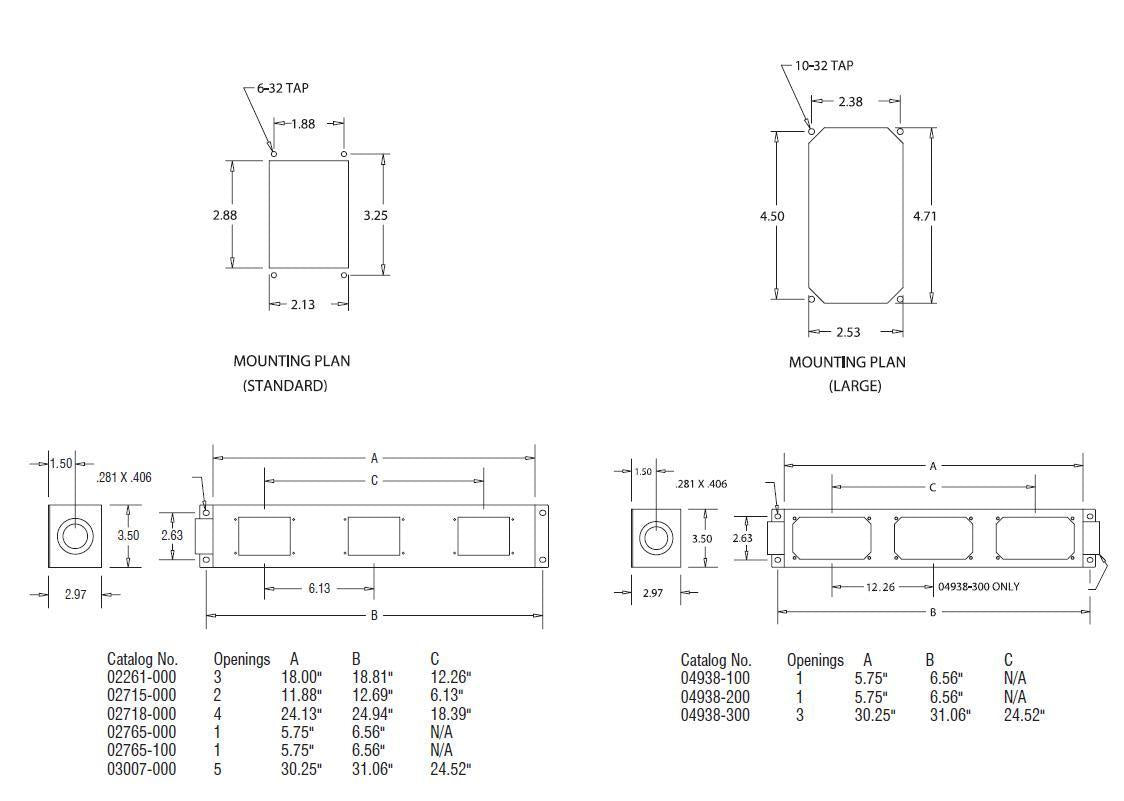

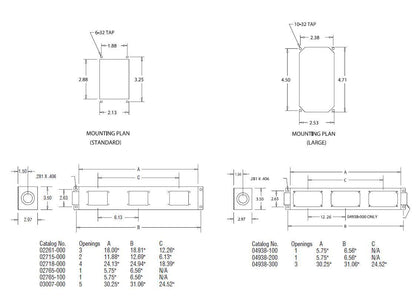

Standard and Large Enclosures are constructed from 14 GA sheet steel and are finished with dry powder paint They are designed to accommodate all standard size REES push button switches, with certain models tailored for larger style switches The enclosure model 02765-100, painted in yellow, is specifically intended for an 'Emergency Stop' switch These enclosures are compatible with any switch that follows the same mounting pattern and are rated Nema 12/13.
Specifications:
| Number of Switch Openings | 4 Standard |
| End Coupling Conduit Size | 1.25" NPT |
| Color | Orange |
| Old Catalog Number | 2718 |
