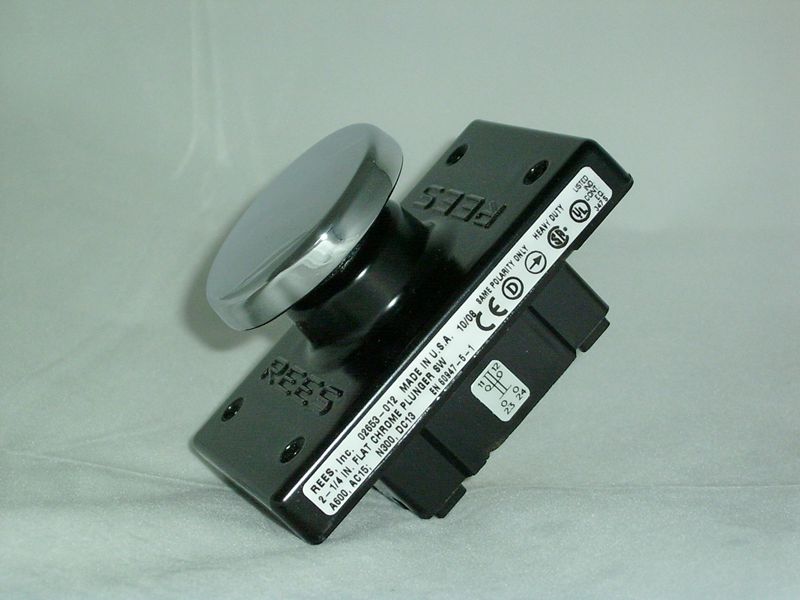

02653-012 Flat Chrome Plunger Push Button Switches

Description:

The Flat Chrome Plunger Push Button Switch is a hand-operated control circuit device rated ‘Heavy Duty’, typically utilized with electromagnetic equipment It features a black cover coated with dry powder paint and a chrome-plated plunger constructed from die-cast zinc The switch includes gold-plated contacts to prevent high resistance tarnishing and is compliant with NEMA 12/13 and IP 65 ratings Each terminal is capable of accepting two #14 AWG stranded wires, and the switch comes with all necessary mounting hardware.

Features and Benefits:

•Heavy duty design for electromagnetic equipment.

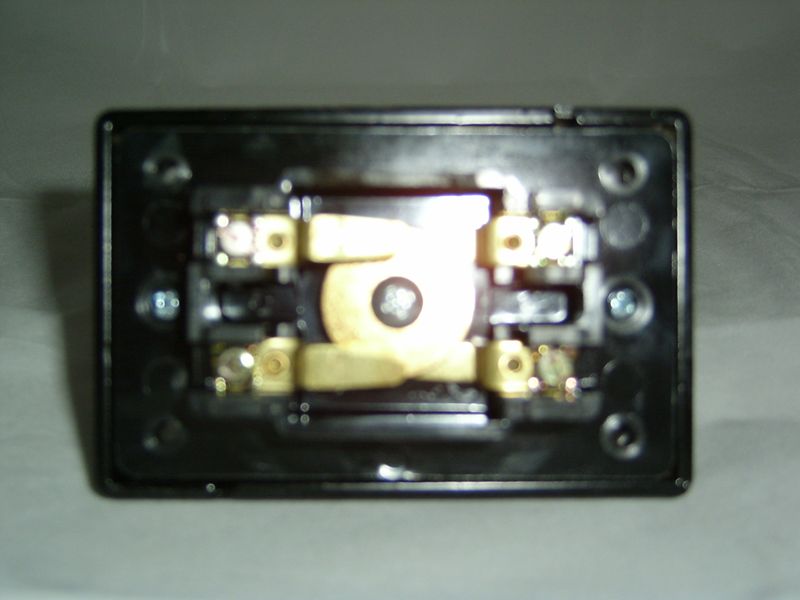

•Gold plated contacts to minimize tarnishing.

•NEMA 12/13, IP 65 rated for protection against dust and water.

•Each terminal accepts two #14 AWG stranded wires.

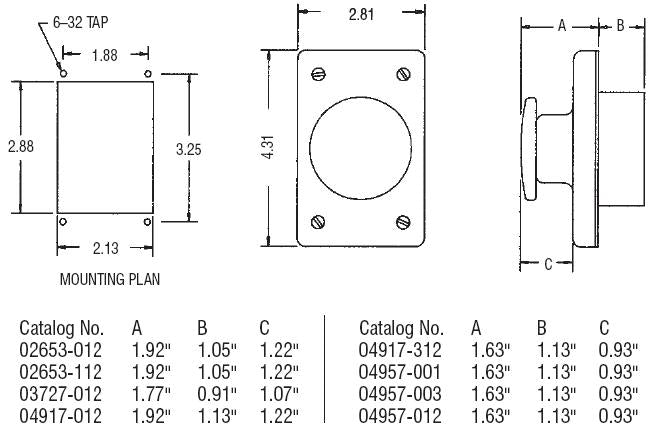

•Includes all mounting hardware.

Specifications:
