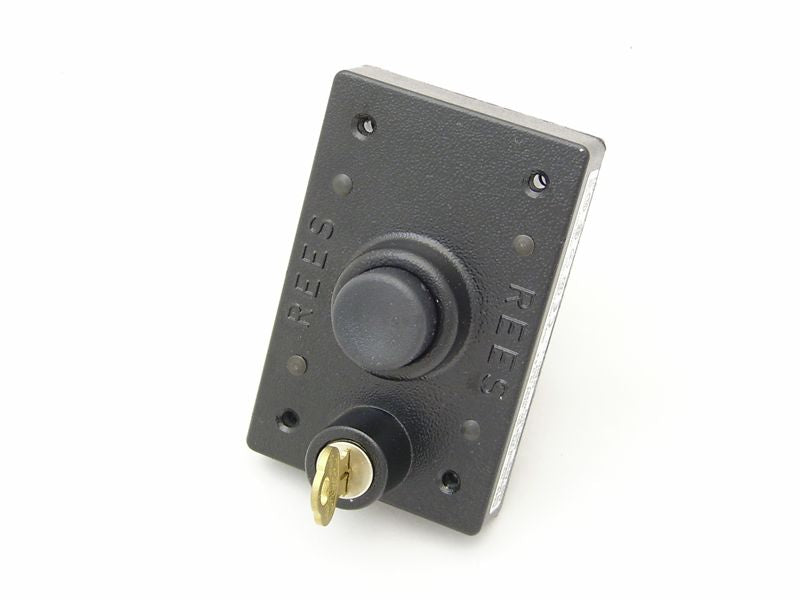

01920-001 1.00 inch Push Button with Key Lock

Description:

The 100 inch Push Button with Key Lock is designed as a hand-operated, key lockable control circuit device It is rated ‘Heavy Duty’, primarily intended for use with electromagnetic equipment The device features a black cover created from die-cast zinc and painted with a dry powder paint The button has a solid black plastic head, ensuring durability It is equipped with gold-plated contacts to prevent high resistance tarnishing and complies with Nema 12/13 and IP 65 standards.

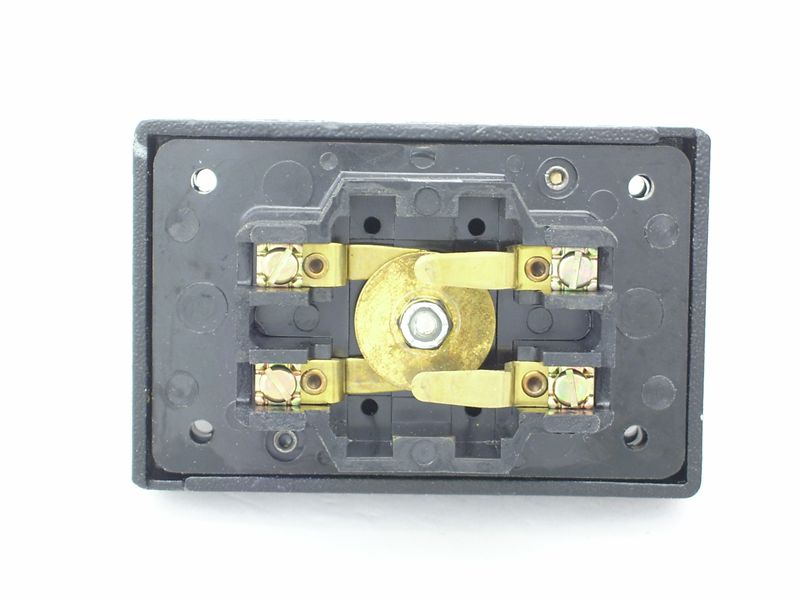

Each captive terminal can accommodate two #14 AWG stranded wires.

Features and Benefits:

•Gold plated contacts to eliminate high resistance tarnishing.

•Heavy Duty rating for electromagnetic equipment.

•Compatible with Nema 12/13 and IP 65 standards.

•Captive terminals accepting two #14 AWG stranded wires.

Specifications:
