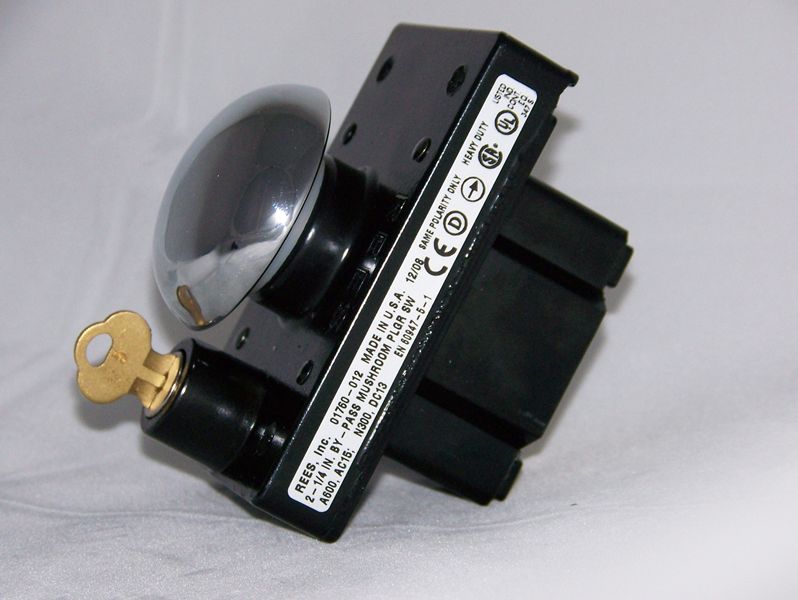

01760-012 2.25 inch Push Button with Key Lock

Description:

The 225 inch Push Button with Key Lock is a hand-operated, key lockable switch rated ‘Heavy Duty’, primarily designed for control circuits with electromagnetic equipment It features a black cover coated with dry powder paint, while the mushroom plunger head is chrome plated and made of die-cast zinc Gold plated contacts are included to prevent high resistance tarnishing, adhering to Nema 12/13 standards and IP 65 specifications.

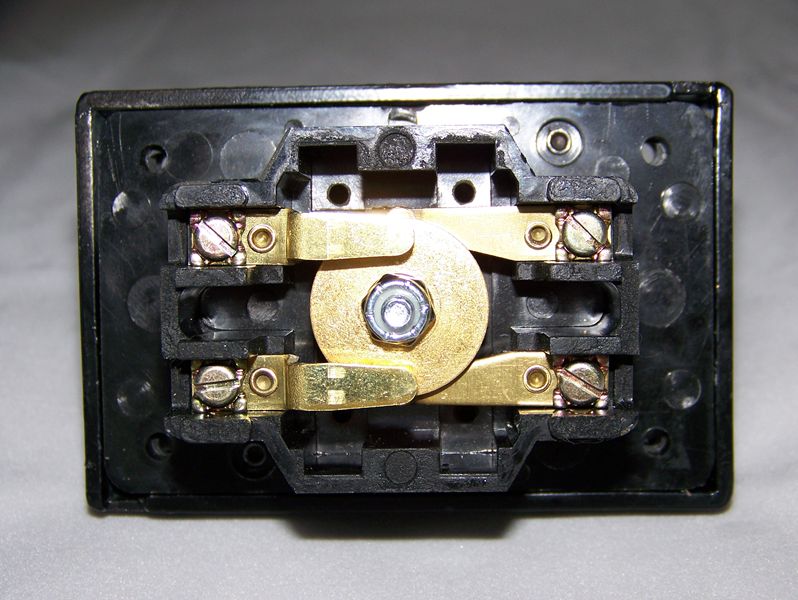

Each terminal of the switch can hold two #14 AWG stranded wires.

Features and Benefits:

•Hand-operated, key lockable control circuit device.

•Rated ‘Heavy Duty’ for use with electromagnetic equipment.

•Chrome plated mushroom plunger head made from die-cast zinc.

•Gold plated contacts to eliminate high resistance tarnishing.

•Nema 12/13, IP 65 rated.

•Accepts two #14 AWG stranded wires per terminal.

Specifications:
