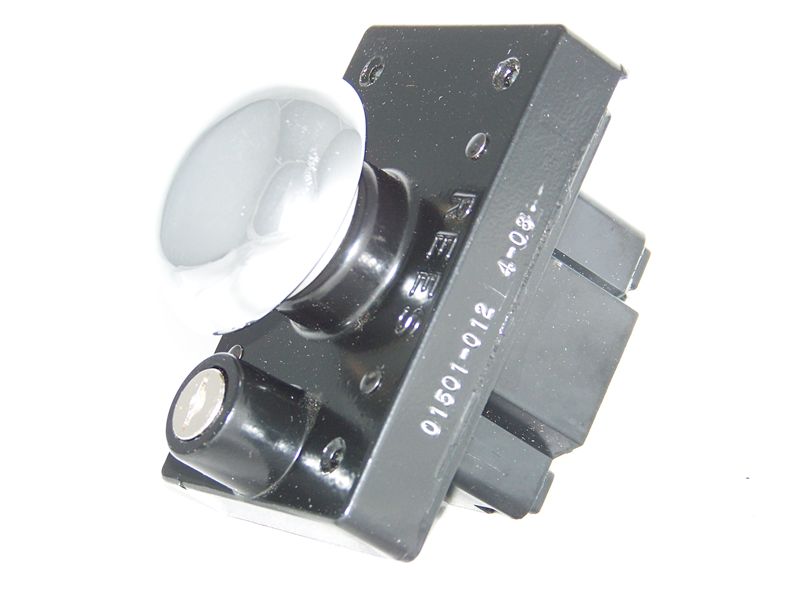

01501-012 2.25 inch Push Button with Key Lock

Description:

The 225 inch Push Button with Key Lock is a hand operated, key lockable control circuit device rated for heavy duty use with electromagnetic equipment It features a black cover painted with dry powder paint and a chrome plated mushroom plunger head made from die-cast zinc The device includes gold plated contacts to eliminate high resistance tarnishing and positive break contacts It meets Nema 12/13 and IP 65 standards, and each captive terminal can accept two #14 AWG stranded wires.

The key locks the plunger in both normal and depressed positions, ensuring secure operation.

Features and Benefits:

•Heavy Duty embedded design suitable for electromagnetic equipment.

•Gold plated contacts to prevent tarnishing.

•Positive break contacts for improved safety.

•Meets Nema 12/13 and IP 65 standards.

•Can accommodate two #14 AWG stranded wires per terminal.

•Removable key for secure lock/unlock operation.

•Key lockable control circuits in industrial environments.

•Electromagnetic equipment control.

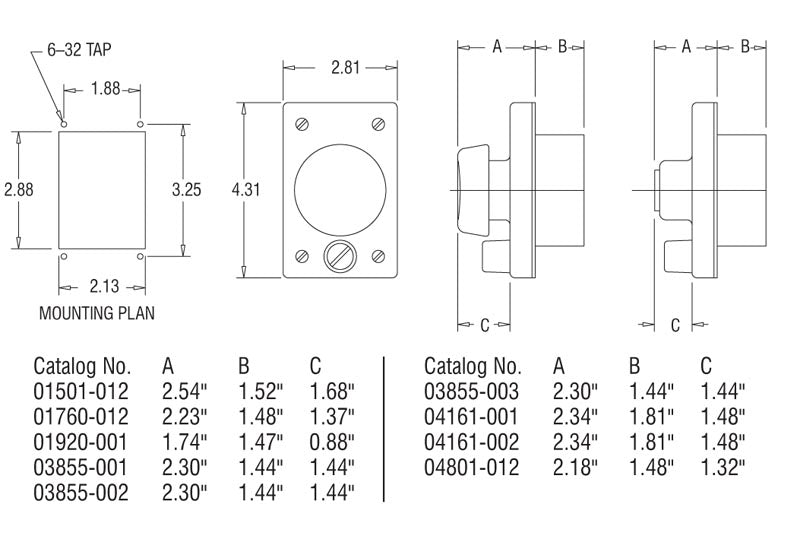

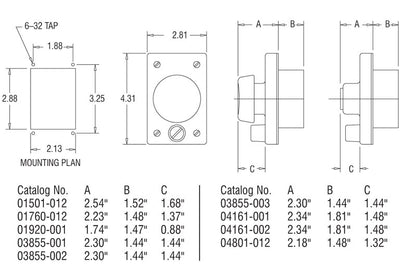

Specifications:
