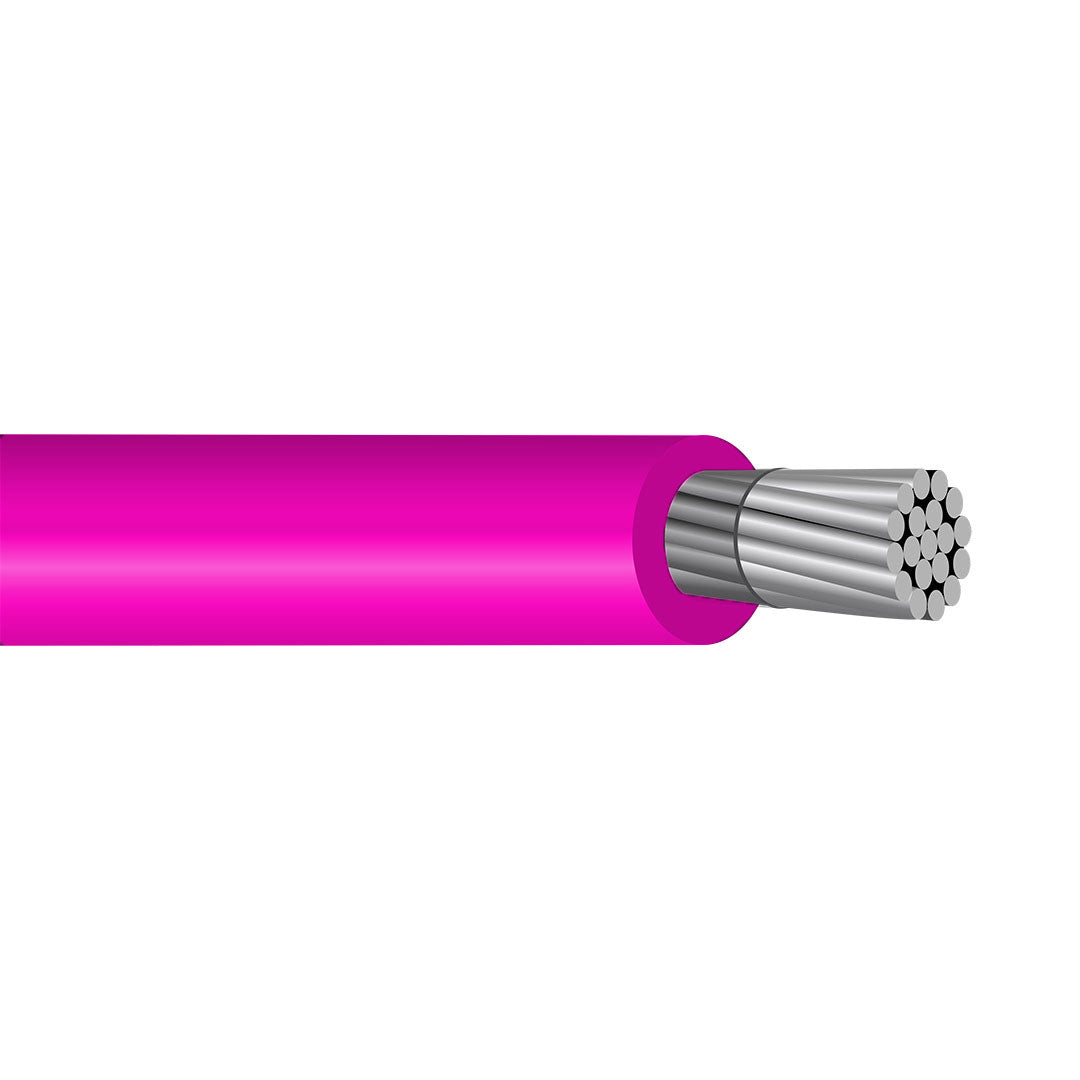

300 MCM THHN THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V

Allowable Ampacity for 300 MCM THHN/THWN-2 Aluminum Cable PVC Insulation Nylon Jacket 600V at 90°C: 255 Amps

Applications:

The electrical wires known as THHN / THWN-2 / T90 cables are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. The voltage rating of this electrical wire, XHHW-2 cable, is 600V.

Also Known As:

300 thhn cable, 300 thwn cable, 300 mcm thhn cable, 300 mcm thwn cable, 300 thhn aluminum, 300 pvc insulated, 300 pvc insulated wire, 300 pvc insulated aluminium wire, 300 pvc sheathed cable, 300 pvc flexible cable.

Standards:

• UL standard 83, 1685, CUL

• CSA C22.2 No. 75

• 1/0 & larger are rated for CT use

• Requirements of the National Electrical Code

• NEMA WC-70 construction requirements

• ASTM standards B 800, B 801, B836

• Federal Specification AA-59544

• Sunlight resistant

• RoHS Compliant

Construction

Conductors:

THHN / THWN-2 / T90 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.

Insulation:

THHN / THWN-2 / T90 has abrasion, heat, moisture, oil, and acid alkaline resistant polyvinyl chloride (PVC) insulation.

Jacket:

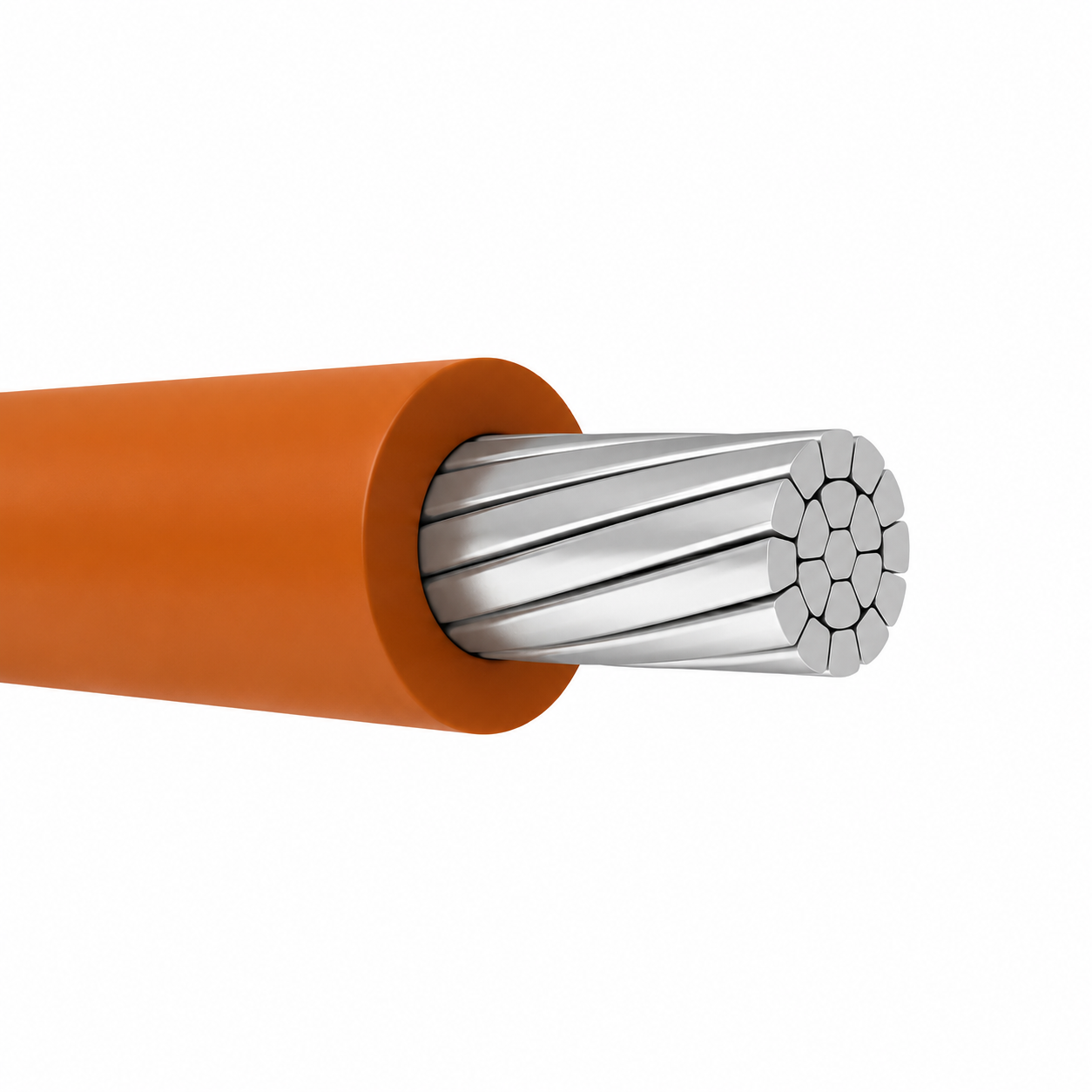

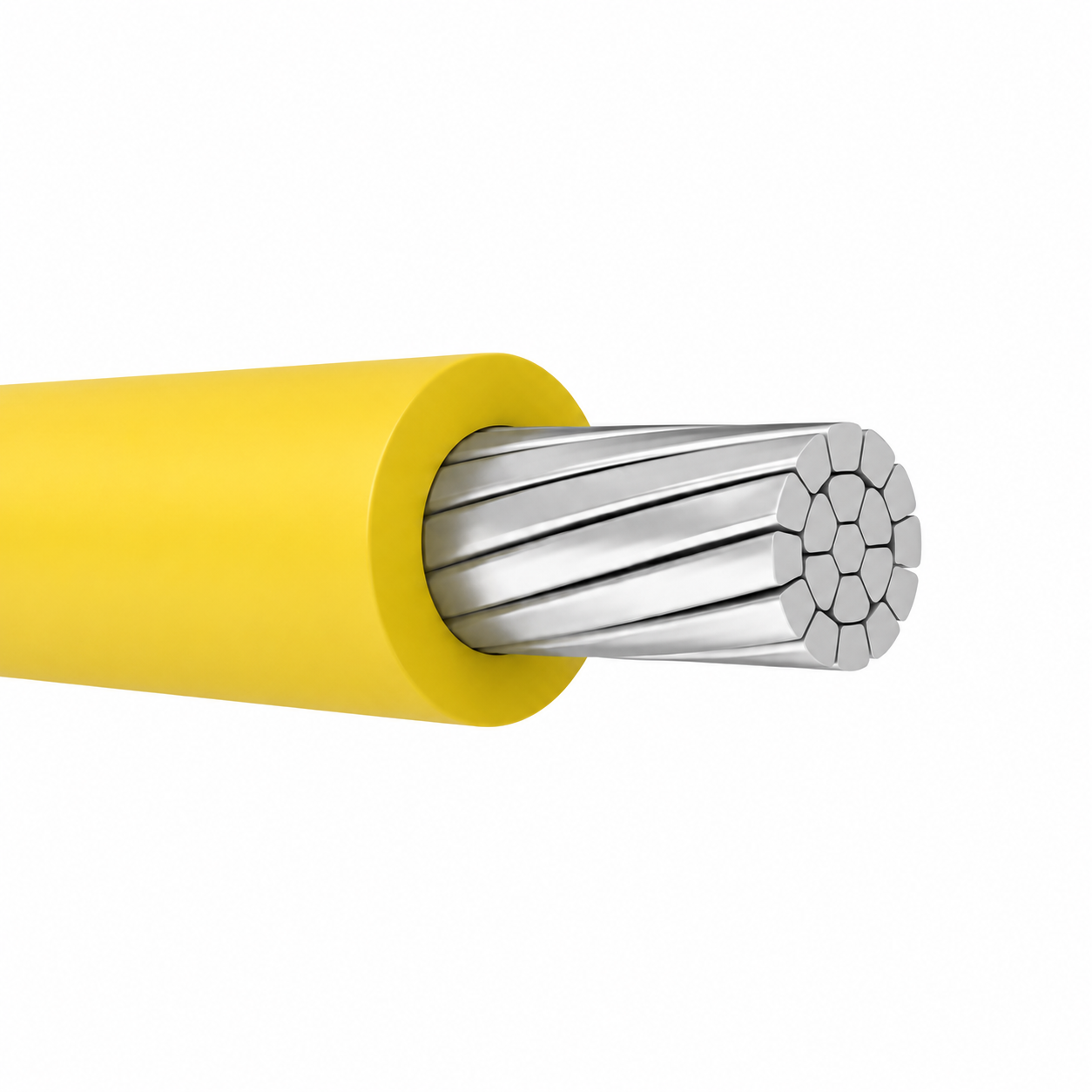

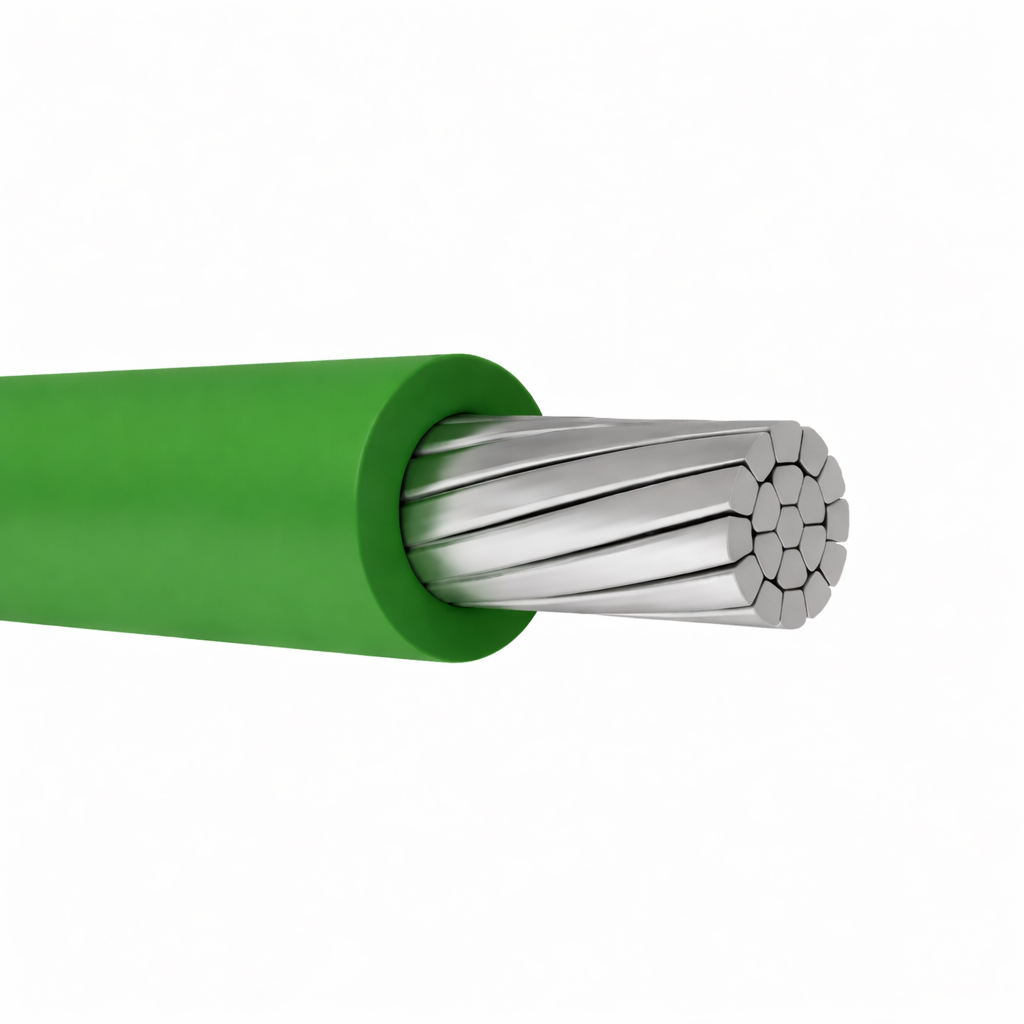

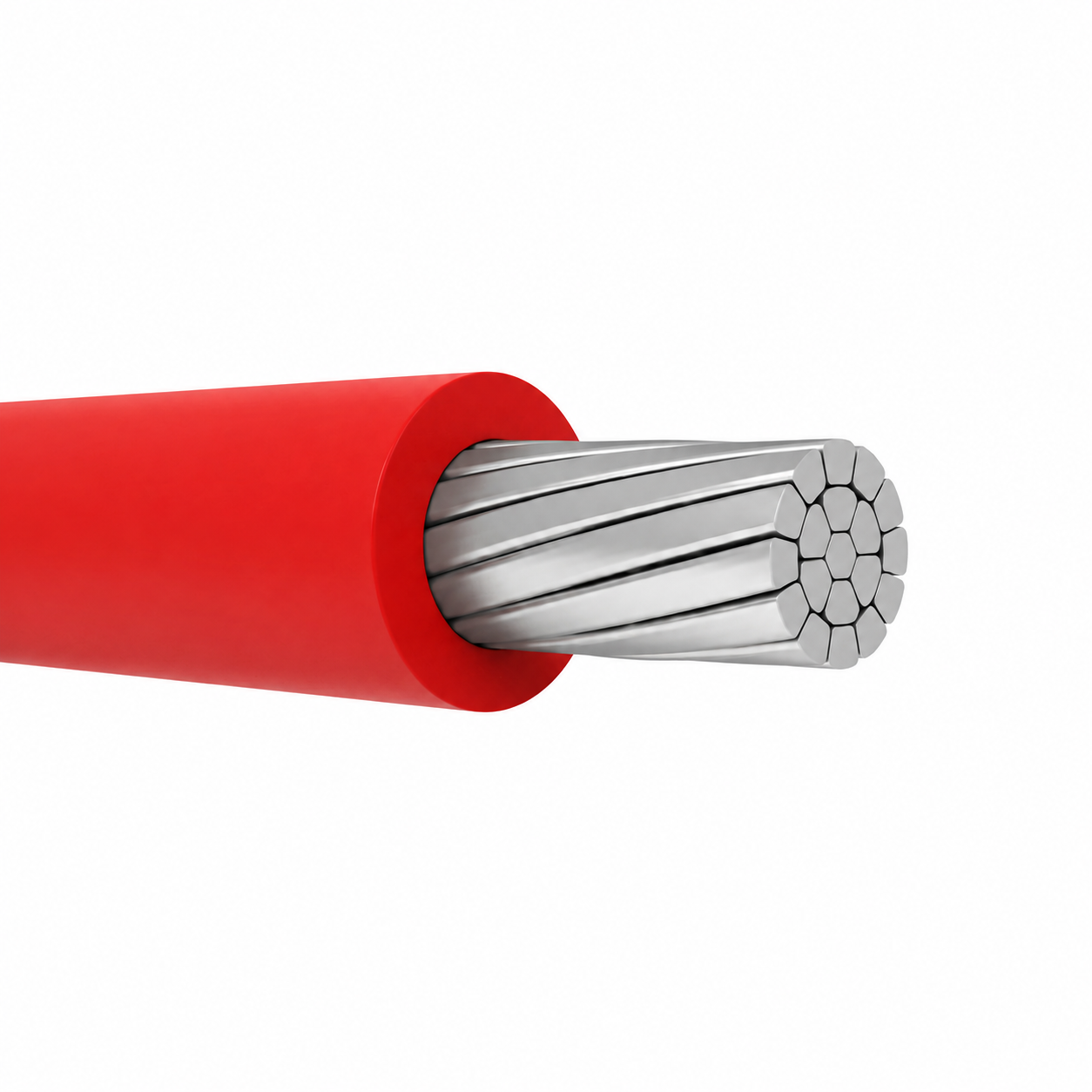

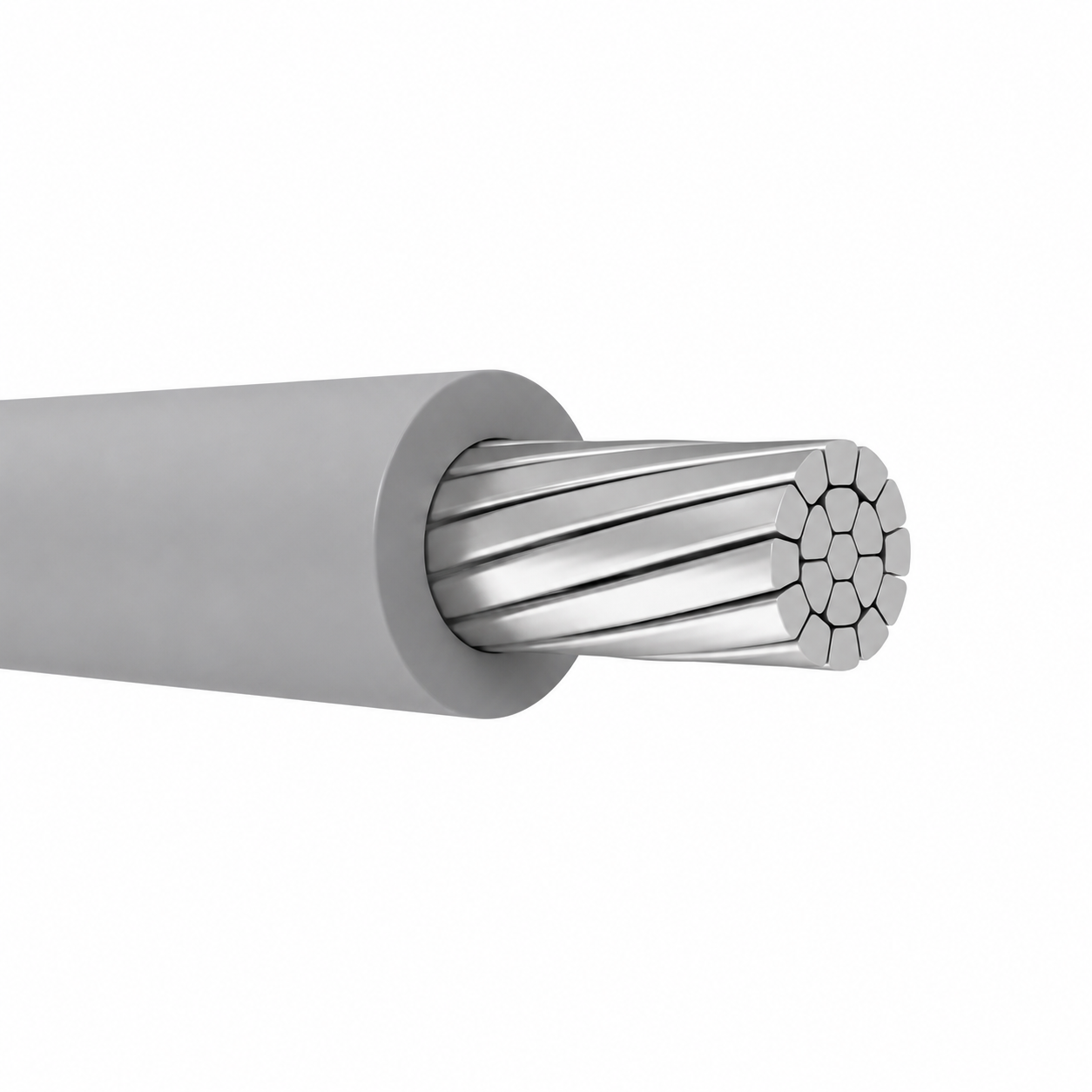

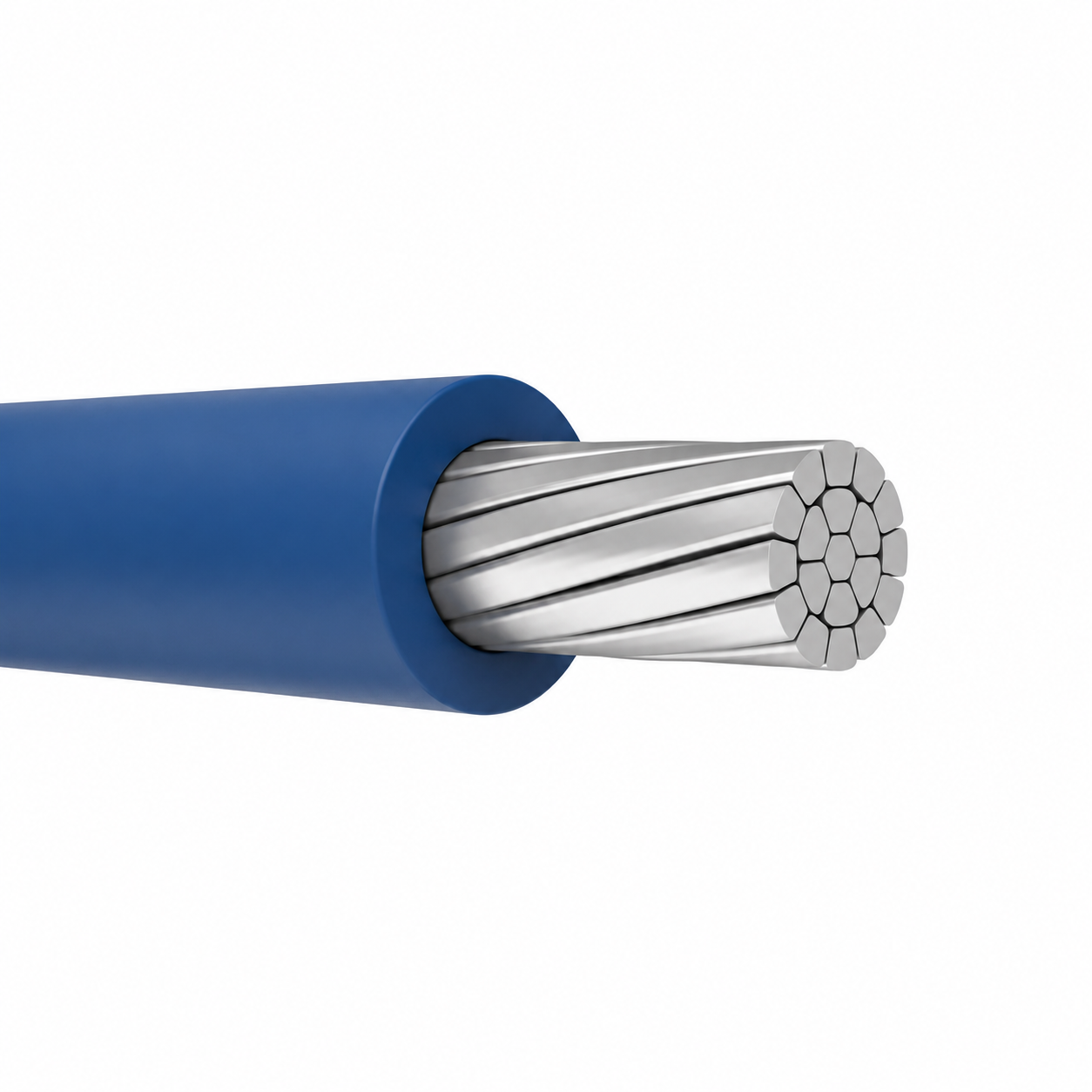

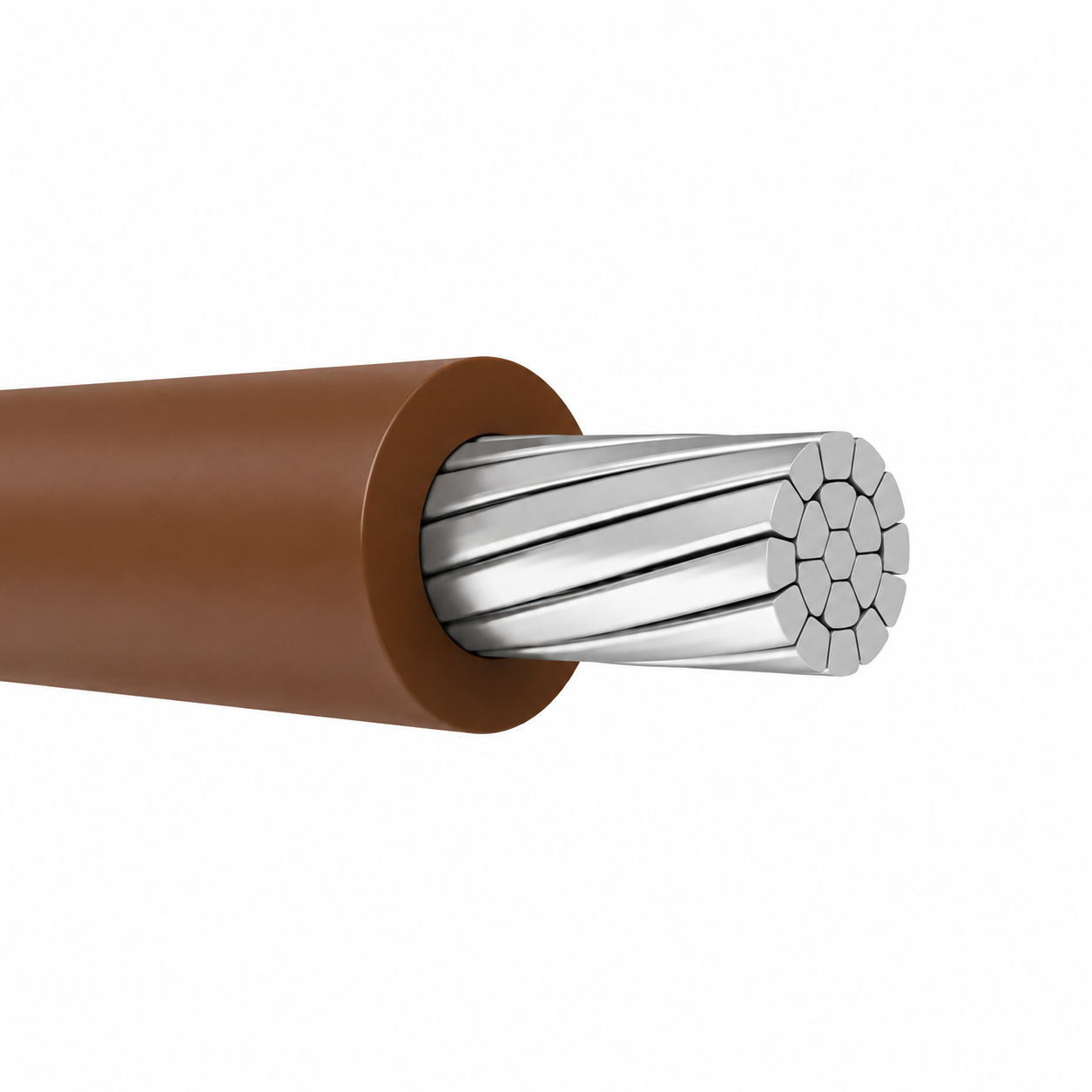

THHN / THWN-2 / T90 cables have a clear abrasion, heat, sunlight, moisture resistant, and low coefficient of friction nylon jacket. Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray, purple, and green.

Specifications:

• Size AWG: 300

• Stranding: 35

• Conductor Diameter Inches: 0.571

• Insulation Thickness Inches: 0.65

• Jacket Thickness Inches: 0.008

• O.D. Inches:  0.706

• New Weight lb/1000FT: 359 lbs

• Ampacity at 90°C: 255 Amps
