Applications:

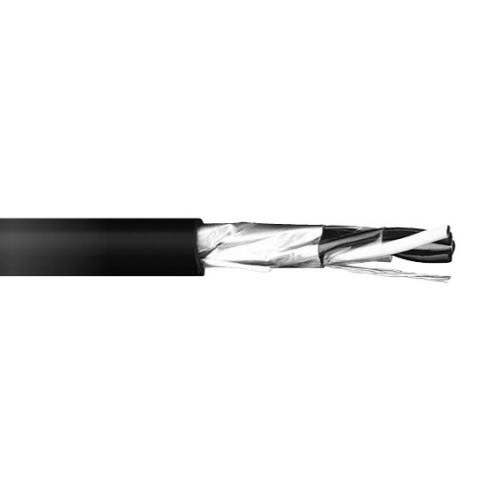

12 Gauge Shielded VNTC Tray cable is suitable for use in Power, control, signal, communication and lighting circuits. For installation in cable trays in accordance with Article 336. Tray cable is approved for use in raceways, supported by messenger wire in open air, for direct burial applications, in Class I & II division 2 hazardous locations and for Class 1 circuits as permitted in Article 725.11(b).
Insulation:
Heat and moisture resistant Polyvinylchloride (PVC) insulation per UL 66
Shield:
100% coverage spiral wound Aluminum-Mylar tape shield, with a 7 strand tinned flexible copper drain wire.
Jacketing:
Black PVC Jacket
Compliances:
• IEEE Flame test
• UL Listed as a tray cable
• Approved for direct burial
• Individual conductors as listed by UL
| Size AWG | Conductors | Overall Diameter (inches) | Weight Per 1000 ft. (lbs.) | Action |
| 12 | 2 | 0.435 | 105 | Request a Quote |
| 12 | 3 | 0.450 | 125 | Request a Quote |
| 12 | 4 | 0.490 | 155 | Request a Quote |
| 12 | 5 | 0.560 | 190 | Request a Quote |
| 12 | 7 | 0.600 | 240 | Request a Quote |
| 12 | 9 | 0.690 | 320 | Request a Quote |
| 12 | 12 | 0.750 | 400 | Request a Quote |
| 12 | 19 | 0.910 | 600 | Request a Quote |
| 12 | 37 | 1.210 | 800 | Request a Quote |
