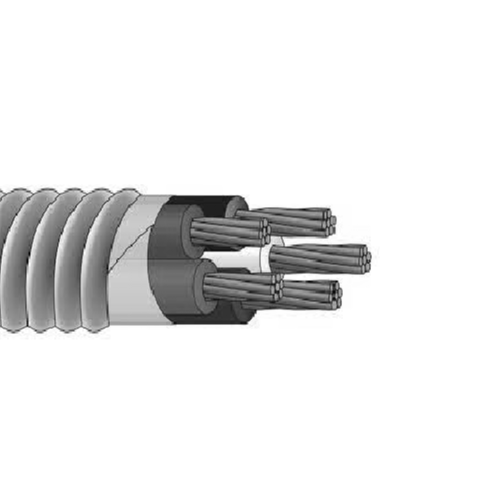

Service Wire Feeder 8 AWG 4 Conductor MC XHHW-2 600 Volt Copper Wire MC8/4

Service Wire Feeder 8 AWG 4 Conductor MC XHHW-2 600 Volt Copper Wire MC8/4

Service Wire Feeder 8 AWG 4 Conductor MC XHHW-2 600 Volt Copper Wire MC8/4

Description: 3 or 4 conductors, stranded, insulated with heat and moisture resistant crosslinked polyethylene (type XHHW-2), phase identified and cabled with suitable fillers** and green or bare ground conductor. Cable core covered with binder tape and aluminum or galvanized steel interlocked armor. Jacket available upon request.

Application: Cost effective replacement for conduit and wire; for service, branch and feeder circuits; and commercial, industrial and utility applications. For use in theatres (article 520), motion picture and TV studios (article 530) and places of assembly with more than 100 people Suitable for use in hazardous locations: Class I - Div 2, Class II - Div 2

Standards:
• UL 1569
• ICEA S-95-658/NEMA WC-70
• Cable Tray Rated
• NEC Article 330 (can be messenger supported)
• Flame Rated: Two-hour Firewall
• Temperature Rated at 90°C Wet/Dry
• Color Code:
• 4 Conductor - Black, Red, Blue and White ( #8 AWG - #1 AWG)
• Method 4 (1/0 AWG and larger)
• Green Ground (#8 AWG - #1 AWG)
• Bare Ground (1/0 AWG and larger)
• RoHS Compliant

technical specification:
size awg or kcmil
8
strand (no.) 7
insulation thickness (mils) 45
insulated/bare grounding conductor (awg) 10
diameter over armor (inch) 0.89
approx. net weight (lb/1000') alum. armor 416
approx. net weight (lb/1000') galv. armor 517
ampacity*(30°c ambient) 90°c wet/dry
55
service wire part number MC8/4
