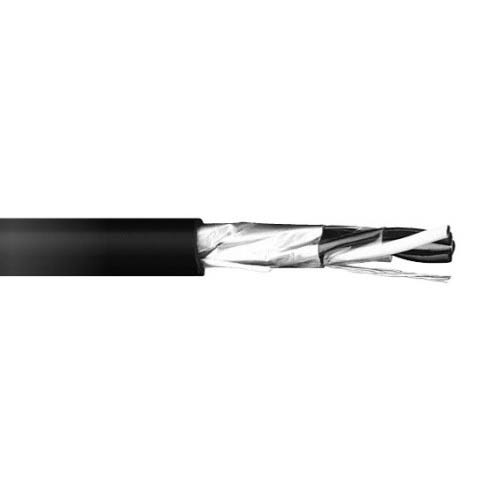

16 Gauge Shielded VNTC Tray Cable UL Type TC-ER Copper Wire 600V

16 Gauge Shielded VNTC Tray Cable UL Type TC-ER Copper Wire 600V

Applications:
Shielded VNTC Tray cable is suitable for use in Power, control, signal, communication and lighting circuits. For installation in cable trays in accordance with Article 336. Tray cable is approved for use in raceways, supported by messenger wire in open air, for direct burial applications, in Class I & II division 2 hazardous locations and for Class 1 circuits as permitted in Article 725.11(b).

Insulation:
Heat and moisture resistant Polyvinylchloride (PVC) insulation per UL 66

Shield:
100% coverage spiral wound Aluminum-Mylar tape shield, with a 7 strand tinned flexible copper drain wire.

Jacketing:
Black PVC Jacket

Compliances:
• IEEE Flame test
• UL Listed as a tray cable
• Approved for direct burial
• Individual conductors as listed by UL

Size AWG Conductors Overall Diameter (Inches) Weight (lbs/1000ft) Action
16 2 0.310 60
Request a Quote
16 3 0.365 78
Request a Quote
16 4 0.390 92
Request a Quote
16 5 0.420 108
Request a Quote
16 7 0.450 130 Request a Quote
16 9 0.470 150 Request a Quote
16 12 0.590 215 Request a Quote
16 19 0.690 310
Request a Quote
16 37 0.940 610
Request a Quote
