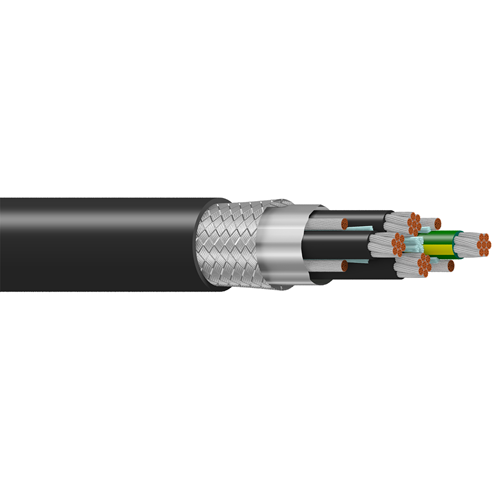

Belden Cable 8 AWG 4 Conductors Classic High Flex Premium 300% Ground Foil/Braid Design Continuous Flex VFD Cable 29504F

Belden Cable 8 AWG 4 Conductors Classic High Flex Premium 300% Ground Foil/Braid Design Continuous Flex VFD Cable 29504F

Belden Cable 8 AWG 4 Conductors Classic High Flex Premium 300% Ground Foil/Braid Design Continuous Flex VFD Cable 29504F

Continuous Flex & Extra Flexible Designs Features:
• Increased range of flexibility, with up to 10M flex cycles for on-machine applications (8AWG and smaller)
• Extreme high-strand conductors ease installation, enable best-in-class vibration resistance with over 2,000 strands on large gauge sizes
• Tinned copper circuit conductors and grounds, TPE jackets for added flexibility
• Optimum shielding design (300%/100% copper at ground potential)
• Heavy industrial-grade XLPE insulation
• Finely stranded tinned or bare copper conductors

Technical Data:
• Type: Premium 300% ground four conductor
• Shielding: Foil + Braid
• Grounding: Full Size Insulated
• Insulation: XLPE (RHHW-2 Thickness)
• Conductor: Stranded Tinned Copper
• Rating: 1000V UL Flexible Motor Supply
• 600V UL 1277 Type TC-ER
• 1000V UL 2277 Type WTTC
• IEEE 1202
• UL Direct Burial
• XHHW-2, RHW-2 rated circuit conductors -14 AWG and larger
• 90°C Wet/Dry
• C(UL) 600V Type CIC TC
• Oil Res I & II
• -40° C cold bend, IEC 60332-3-22 Cat A (flame test)
• Sunlight resistant
• Suitable for Class I, II & III, Division 2 hazardous locations
• UL 1685 Vertical Tray Flame Test
• RoHS compliant
• CE approved
• 10 million flexes – 16 through 8 SWG only
• NFPA79 Compliant for Continuous Flex

Benefits:
• Superior protection against electrical noise
• Increased stability in electrical performance
• Improved system uptime in harsh environments

Technical Specification:
awg 8
cond. stranding 4 x 41 x 30
standard lengths*(ft.) 1000
standard lengths*(m) 305
standard unit wt.(lbs.) 604 / 1000ft
standard unit wt.(kg) 274 / 305m
nominal od(inch) 0.93
nominal od(mm) 23.70
maximum pull tension(lbs.) 768
maximum pull tension(n) 3418
minimum bend radius(inch) 4.70
minimum bend radius(mm) 119.38
minimum bend radius cont. flex(inch) 7.00
minimum bend radius cont. flex(mm) 177.8
belden cable part number 29504F
