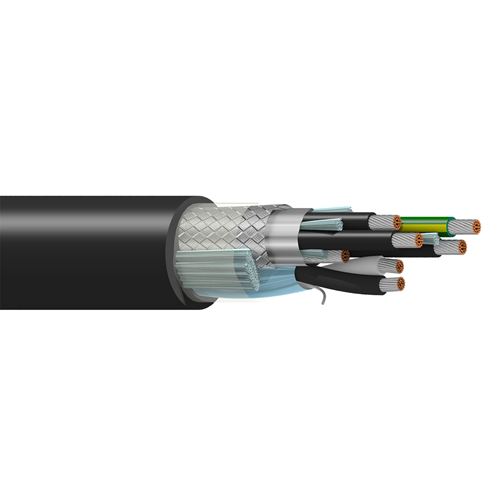

Belden 29510 16 AWG 3 Conductor 26x30 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 300% Ground Flexible VFD, 3 Conductor 16AWG (26x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield, 1 Pair 16AWG (26x30) Tinned Copper XLPE Beldfoil, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant Shielded Pair is Outside the Power Group Braid Shield for Isolation Technical Specifi.

Insulation:

Element: Conductor(s):-
Material: XLPO - Crosslink Polyolefin
Nom. Thickness: 0.046 in (1.2 mm)
Nom. Insulation Diameter: 0.153 in (3.89 mm)

Element: Pair(s):-
Material: XLPO - Crosslink Polyolefin
Nom. Thickness: 0.032 in (0.81 mm)
Nom. Insulation Diameter: 0.123 in (3.12 mm)

Element: Ground Wire:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.047 in (1.2 mm)
Nom. Insulation Diameter: 0.153 in (3.89 mm)

Inner Shield:

• Element: Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (19x30) TC
• Foil-In, Shorting fold

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%, Drainwire Type 16 AWG (26x30) TC

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

• Foil+braid shield on power conductors & Ground only; extra pair has own foil shield.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.075 in (1.9 mm)
• Nom. Diameter: 0.750 in (19.1 mm)
• Overall Cable Diameter (Nominal): 0.750 in (19.1 mm)
• Polyester Tape

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems; Class 1 Division 2 Hazardous Locations
