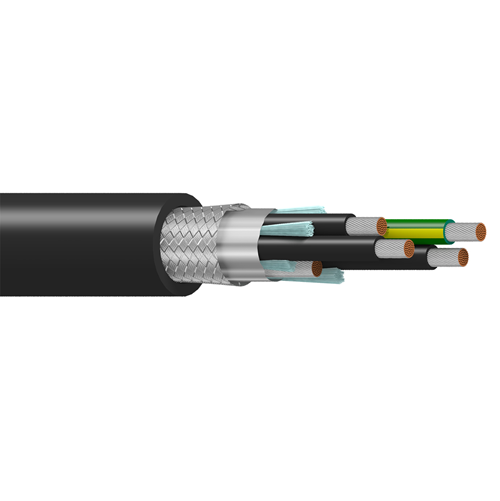

Belden 29500F 16 AWG 3 Conductor 65x34 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 300% Ground Extra Flexible VFD, 3 Conductor 16AWG (65x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/16AWG Tinned Copper Drain, Black TPE Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II DIR BUR.

Insulation:

Element: Conductor(s):-
Material: XLPO - Crosslink Polyolefin
Nom. Thickness: 0.046 in (1.2 mm)
Nom. Insulation Diameter: 0.151 in (3.84 mm)

Element: Ground Wire:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.046 in (1.2 mm)
Nom. Insulation Diameter: 0.151 in (3.84 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%, Drainwire Type 16 AWG (65x34) TC

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 80%

Outer Jacket:

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.528 in (13.4 mm)
• Overall Cable Diameter (Nominal): 0.528 in (13.4 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas
