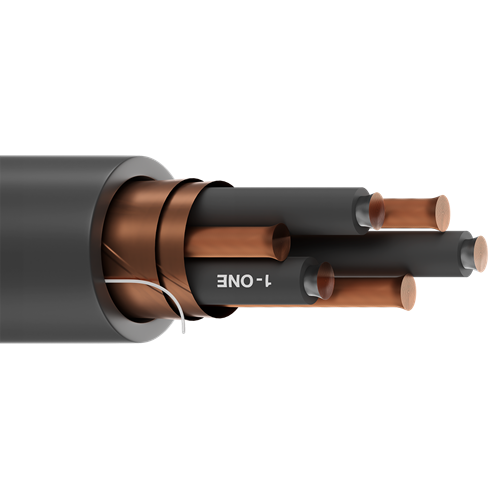

Belden 29529F 1/0 AWG 3 Conductor 19x56x30  Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 100% Ground Extra Flexible VFD, 3 Conductor 1/0AWG (19x56x30) Tinned Copper XLPE Insulation M4 Color Code + 1/0AWG Symmetrical Segmented Ground (3 of 4AWG) Tinned Copper Stranded, Overall Dual Copper Tape Helically Applied Shield, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II DIR BUR.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.057 in (1.4 mm)

Outer Shield:

• Shield Type: Helical Tape
• Material: Bare Copper (BC)
• Coverage: 100%

Outer Jacket:

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.083 in (2.1 mm)
• Nom. Diameter: 1.292 in (32.82 mm)
• Overall Cable Diameter (Nominal): 1.292 in (32.82 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas; Class 1 Division 2 Hazardous
Locations
