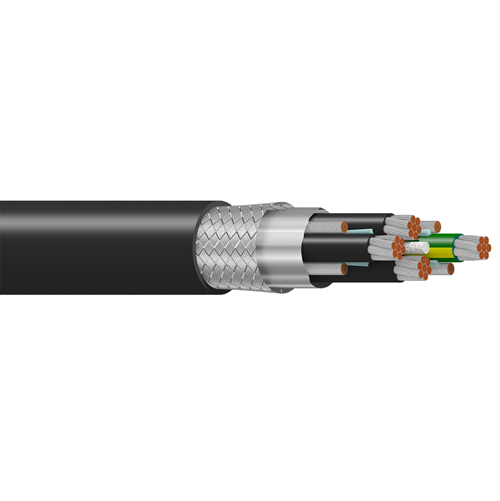

Belden 29507T 2 AWG 3 Conductor 7x19x23 Stranding 1000V Variable Frequency Drives Cable

Description:

Belden 300% Ground Flexible VFD, 3 Conductor 2AWG (7x19x23) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/4-8AWG Tinned Copper Drains, Black LSZH Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC SUN RES DIR BUR.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.062 in (1.6 mm)

Element: Ground:-
Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.062 in (1.6 mm)

Outer Shield:

• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100%

• Shield Type Braid, Tinned Copper (TC) Material, Coverage 85%

Outer Jacket:

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.105 in (2.67 mm)
• Nom. Diameter: 1.344 in (34.14 mm)
• Overall Cable Diameter (Nominal): 1.344 in (34.14 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems; Human safety applications with flame or toxicity concerns (low smoke, zero halogen); Class 1 Division 2
Hazardous Locations
