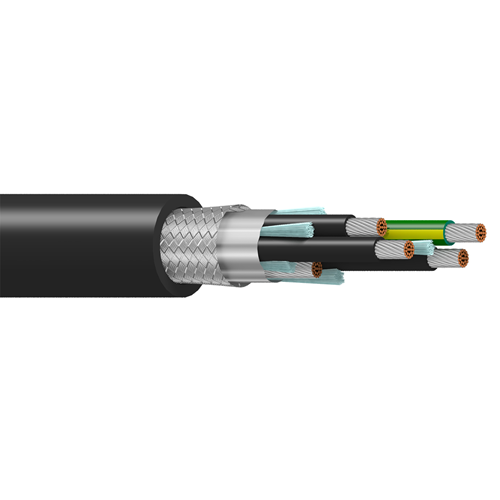

Belden 29500T Cable 16 AWG 4 Conductors Classic 300% Ground Foil/Braid Design Low Smoke Zero Halogen VFD Cable

Belden 29500T Cable 16 AWG 4 Conductors Classic 300% Ground Foil/Braid Design Low Smoke Zero Halogen VFD Cable

Belden 29500T Cable 16 AWG 4 Conductors Classic 300% Ground Foil/Braid Design Low Smoke Zero Halogen VFD Cable

Classic Foil/Braid Designs Features:
• High-strand conductors ease installation; enable better vibration resistance
• Full-sized insulated ground allows lower resistance path to ground
• Tinned copper conductors to prevent against corrosion
• Low capacitance and low impedance of the cables closely matches the drive and electrical values
• Round configuration for reliable sealing
• Optimum shielding design (300%/100% copper at ground potential)
• Heavy industrial-grade XLPE insulation
• Finely stranded tinned or bare copper conductors

Technical Data:
• Type: Premium 300% ground four conductor
• Shielding: Foil + Braid
• Grounding: Full Size Insulated
• Insulation: XLPE (RHHW-2 Thickness)
• Conductor: Stranded Tinned Copper
• Rating: 1000V UL Flexible Motor Supply
• 600V UL 1277 Type TC-ER
• 1000V UL 2277 Type WTTC
• 1000V CSA AWM I/II A/B FT4
• IEEE 1202
• UL Direct Burial
• XHHW-2, RHW-2 rated circuit conductors -14 AWG and larger
• 90°C Wet/Dry
• Suitable for Class I, II & III, Division 2 hazardous locations
• MSHA
• UL 1685 Vertical Tray Flame Test
• RoHS compliant
• CE approved

Benefits:
• Superior protection against electrical noise
• Increased stability in electrical performance
• Improved system uptime in harsh environments

technical specifications:
awg 16
cond. stranding 26 x 30
standard lengths(ft) 1000
standard lengths(m) 304.8
standard unit wt(lbs.) 191.0
standard unit wt(kg) 86.6
nominal od(inch) 0.53
nominal od(mm) 13.46
maximum pull tension(lbs.) 128
maximum pull tension(n) 570
minimum bend radius(inch) 4.3
minimum bend radius(mm) 109.2
belden cable part number 29500T
