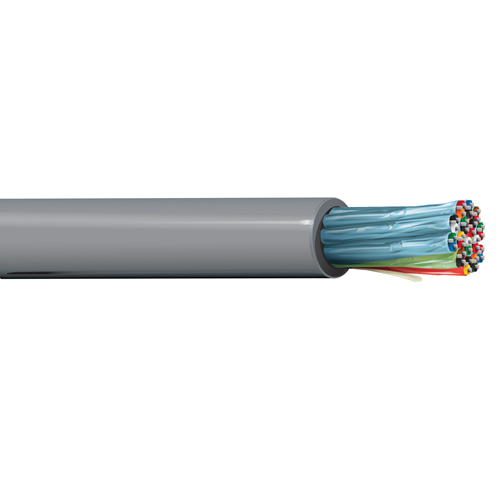

Belden 9993 24 AWG 12 Pair 7x32 Stranding Tinned Copper 60 Ohm Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, twisted pairs, 12 individually shielded with Beldfoil (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC
• Each pair is individually shielded with Beldfoil (100% coverage).

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.428 in (10.9 mm)

Standards:

• Impedance: 60 Ohm
• Operating Temperature Range: -20°C to +80°C.
• Voltage Rating: 30V RMS (UL AWM Style 2919); 300V RMS.
• Nominal Capacitance (Cond-to-Cond): 25 pF/ft (picofarads per foot).

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
