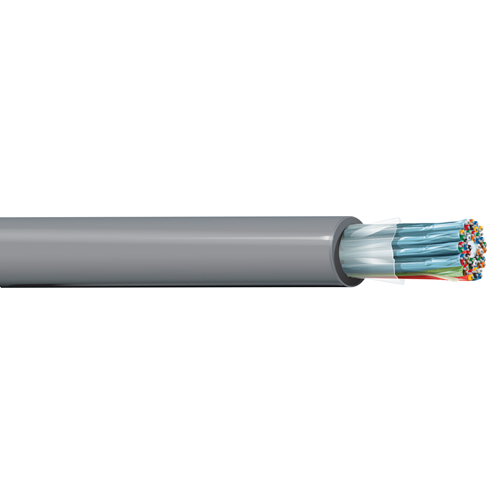

Belden 9767 22 AWG 37 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 37-Pair, 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, individually shielded pairs with Beldfoil (100% coverage), overall PVC jacket, and 22 AWG stranded tinned copper drain wire.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.0105 in (0.267 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.069 in (1.8 mm)
• Nom. Diameter: 0.8 in (20 mm)
• Overall Cable Diameter (Nominal): 0.8 in (20 mm)

Standards:

• Operating Temperature: -20°C to +80°C
• Nom. Characteristic Impedance: 50 Ohm
• Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 37
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9767
