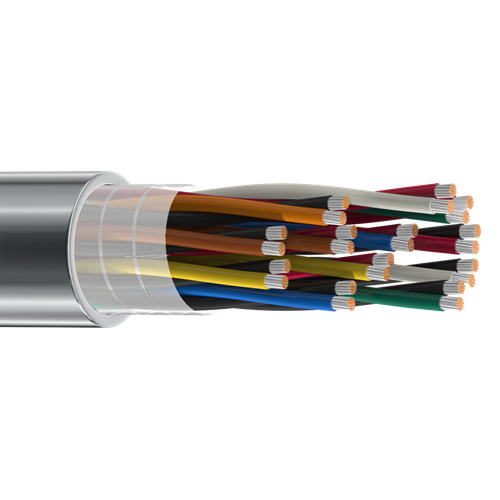

Belden 9741 18 AWG 24 Conductor 16x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 12 Pair 18 AWG (16x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.046 in (1.2 mm)
• Nom. Diameter: 0.600 in (15.2 mm)
• Overall Cable Diameter (Nominal): 0.600 in (15.2 mm)
• Separator: PP - Polypropylene Tape

Standards:

• Operating Temperature: -20°C to +80°C
• Voltage Rating: 300 V (CMG), 300 V (AWM 2464)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 18
• No. of Conductor: 24
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9741
