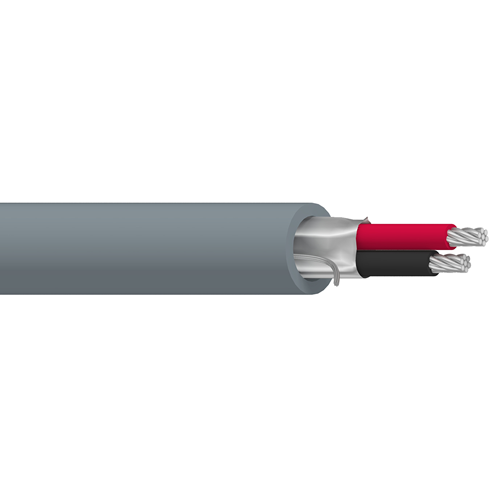

Belden 9464 20 AWG 2 Conductor 7x28 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 20 AWG (7x28) Tinned Copper, PO Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.70 in (18 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.214 in (5.44 mm)

Standards:

• Operating Temperature: -20°C To +60°C
• Voltage Rating: 300 V

Applications:

• for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
