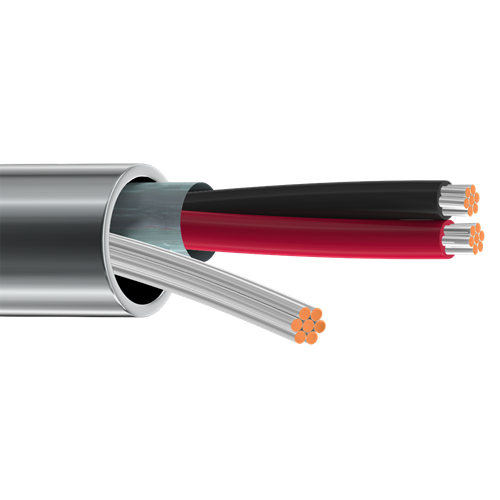

Belden 9462 22 AWG 2 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 2 Conductor 22 AWG (7x30) Tinned Copper, PVC Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CMG.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.0155 in (0.394 mm)
• Nom. Insulation Diameter: 0.060 in (1.5 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.194 in (4.93 mm)
• Overall Cable Diameter (Nominal): 0.194 in (4.93 mm)

Standards:

• Operating Temperature: -30°C to +80°C
• Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
