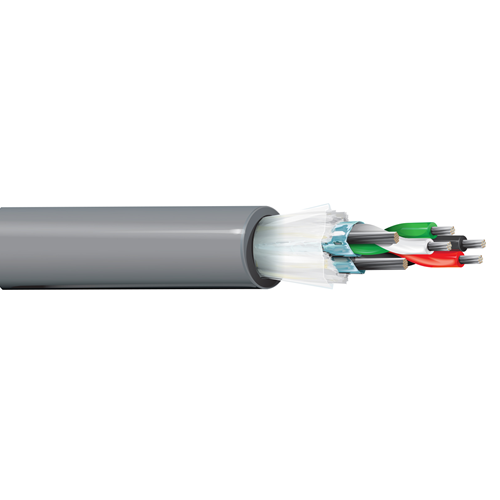

Belden 9406 22 AWG 2 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, twisted pairs, individually shielded with Beldfoil (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.051 in (1.3 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.173 in
• Overall Cable Diameter (Nominal): 0.173 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +80°C

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Pair: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9406
