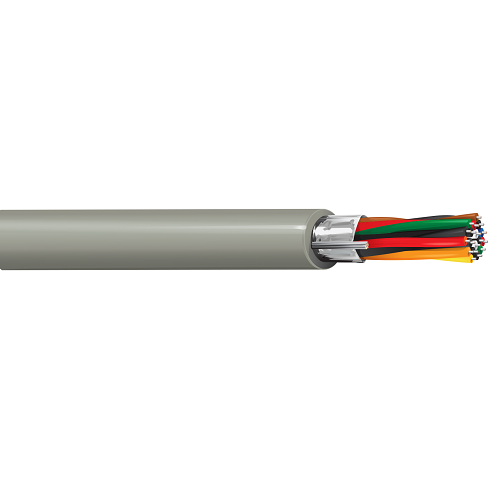

Belden 9309 22 AWG 9 Conductor Solid Tinned Copper 300V Audio Control and Instrument Cable

Description:-

Audio, Control and Instrument Cable, 22 AWG solid tinned copper conductors, PVC insulation, twisted pairs, overall Beldfoil shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.052 in (1.3 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.363 in
• Overall Cable Diameter (Nominal): 0.363 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C to +80°C

Applications:-

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:-

• Size (AWG): 22
• No. of Conductor: 9
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 9309
