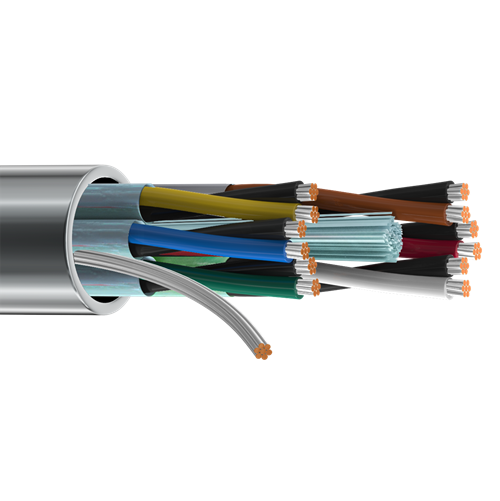

Belden 8778 22 AWG 6 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 6-Pair, 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, individually shielded pairs with Beldfoil (100% coverage), overall PVC jacket and 22 AWG stranded tinned copper drain wire.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC
• Each pair is individually shielded with Beldfoil (aluminum foil-polyester tape with 100% coverage) and a 22 AWG tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.034 in (0.86 mm)
• Nom. Diameter: 0.352 in (8.94 mm)
• Overall Cable Diameter (Nominal): 0.352 in (8.94 mm)

Standards:

• Operating Temperature: -20°C to +80°C.
• Impedance: Nominal characteristic impedance of 50 Ohms.
• Voltage Rating: 300 V RMS (CM rating) or 30 V RMS (UL AWM Style 2919).

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
