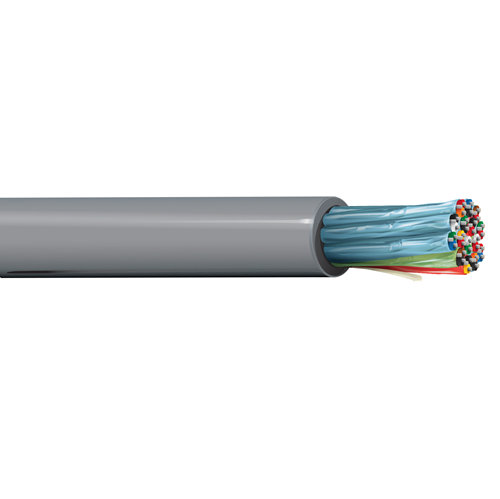

Belden 8775 22 AWG 11 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 11-Pair, 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, individually shielded pairs with Beldfoil (100% coverage), overall PVC jacket, and 22 AWG stranded tinned copper drain wire.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.0105 in (0.267 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC
•  Individually foil shielded pairs with Beldfoil (100% coverage)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.036 in (0.91 mm)
• Nom. Diameter: 0.464 in (11.8 mm)
• Overall Cable Diameter (Nominal): 0.464 in (11.8 mm)

Standards:

• Voltage Rating: 300 V.
• Nominal Impedance: 50 Ohms
• Operating Temperature: -20°C to +80°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
