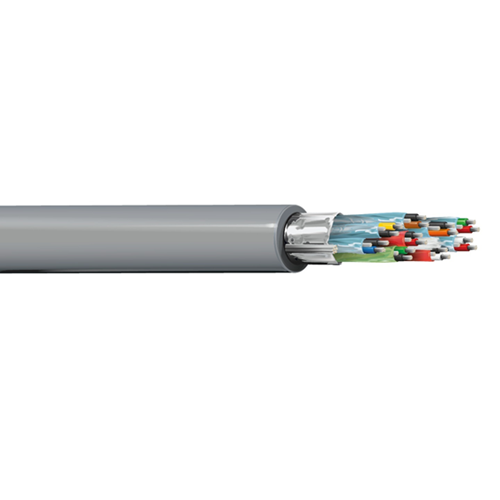

Belden 8774 22 AWG 9 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 9-Pair, 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, individually shielded pairs with Beldfoil (100% coverage), overall PVC jacket and 22 AWG stranded tinned copper drain wire.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC
• Individual pair shielding with Beldfoil (aluminum/polyester foil)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.034 in (0.86 mm)
• Nom. Diameter: 0.410 in (10.4 mm)
• Overall Cable Diameter (Nominal): 0.410 in (10.4 mm)

Standards:

• Nominal Impedance: 50 Ohms
• Operating Temperature: -20°C to +80°C.
• Voltage Rating: 300 V (UL AWM Style 2919) or 30 V.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
