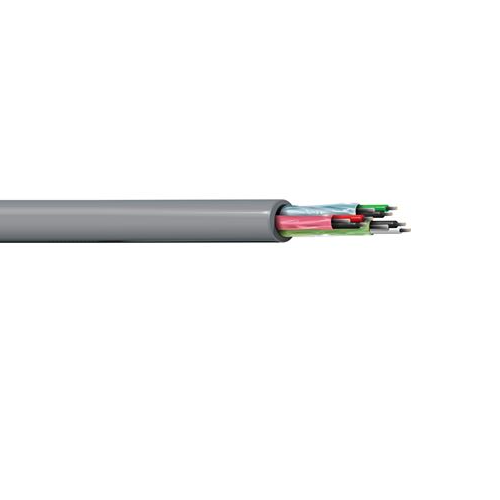

Belden 8767 22 AWG 3 Pair Solid Tinned Copper 300V Audio Control and Instrument Cable

Description:-

Audio, Control and Instrument Cable, 22 AWG solid conductors, PVC insulation, tinned copper, twisted pairs, individually shielded with Beldfoil (100% coverage), 22 AWG solid tinned copper drain wire, overall PVC jacket.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.052 in (1.3 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (Solid) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.279 in
• Overall Cable Diameter (Nominal): 0.279 in

Applications:

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Standards:-

• UL Voltage Rating: 300V
• Operating Temperature Range: -20°C to +80°C

Specifications:-

• Size (AWG): 22
• No. of Pair: 3
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 8767
